SKF

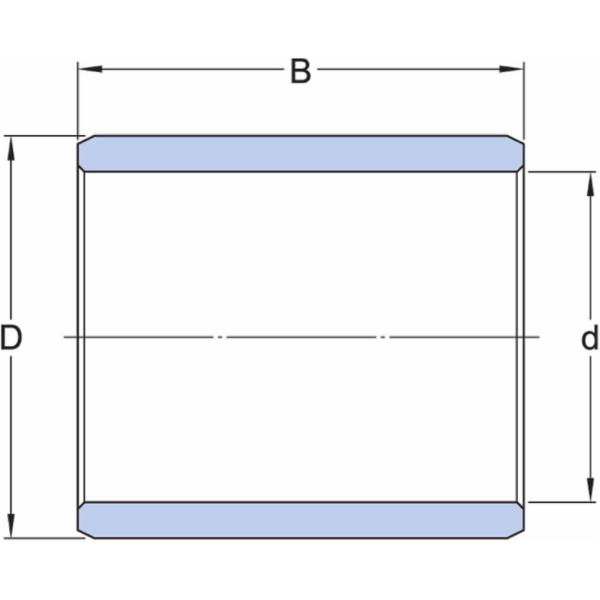

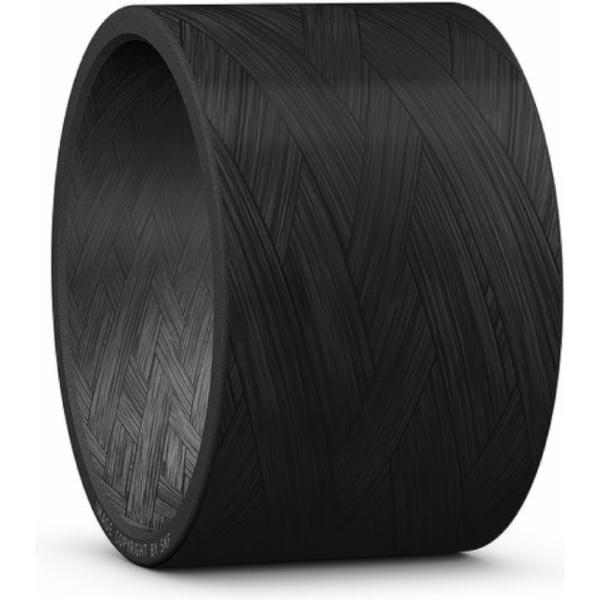

SKF PWM 11012580 straight wound plain bearing sleeve 110 x 125 x 80 mm

This article is not available

Product description:

  • The basis of this type of sliding bushing, are braided fibres, enriched with "Matrix" (a specially developed resin) and this combined with the excellent strength property of glass fibre and of PTFE, the high strength of thermoplastic PES fibres
  • SKF wound bushings are suitable for applications where there are heavy loads and vibrations and where maintenance-free use is preferred
  • Applications include:
    • Construction machinery
    • Agricultural and forestry machinery
    • Lifting and conveyor equipment
    • Offshore installations
Key features according to our expert
  • Inner diameter: 110 mm
  • Width: 80 mm
  • With collar: No
  • Material (plain bearing bush): Glass fibre and PTFE
  • Outer diameter: 125 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571166179
  • Supplier number: SKF PWM 11012580
Inner diameter
110 mm
Width
80 mm
With collar
No
Material (plain bearing bush)
Glass fibre and PTFE
Outer diameter
125 mm
Material
Filament wound
Relubrication feature
Without
Basic static load rating
1,730 kN
Bore diameter
110 mm
Basic dynamic load rating
1,220 kN
Outside diameter
125 mm
Design
Straight
