SKF

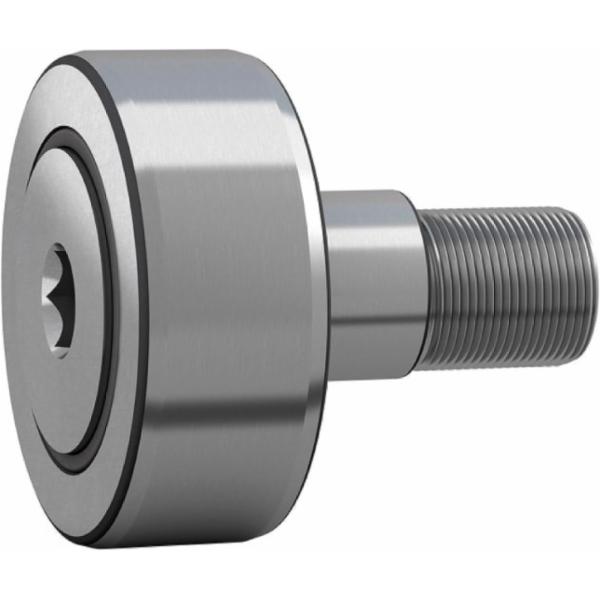

SKF PWKRE 52.2RS cam roller with eccentric collar, integrated seal and relubrication 52 mm

This article is not available

Key features according to our expert
  • Outer diameter: 52 mm
  • Stud diameter: 20 mm
  • Width: 66 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571194783
  • Supplier number: SKF PWKRE 52.2RS
Outer diameter
52 mm
Stud diameter
20 mm
Width
66 mm
Tolerance class
Other
Rolling elements
Cylindrical rollers
Functional outside diameter
52 mm
Material, bearing
Bearing steel
Feature for tightening
Hexagonal recess
Cage
Without
Sealing type
Contact
Width, outer ring
24 mm
Lubricant
Grease
Relubrication feature
Centre of each stud end
Basic static load rating
26.5 kN
Radial internal clearance
Between C2 and CN
Number of flanges, outer ring
2
Sealing
Seal on both sides
Outer ring profile
Crowned
Limiting speed
3,200 r/min
Number of rows
2
Basic dynamic load rating
23.8 kN
Coating
Without
Length
66 mm
Stud alignment
Centric stud with eccentric collar
