skf_p2bss40m_tpss
SKF

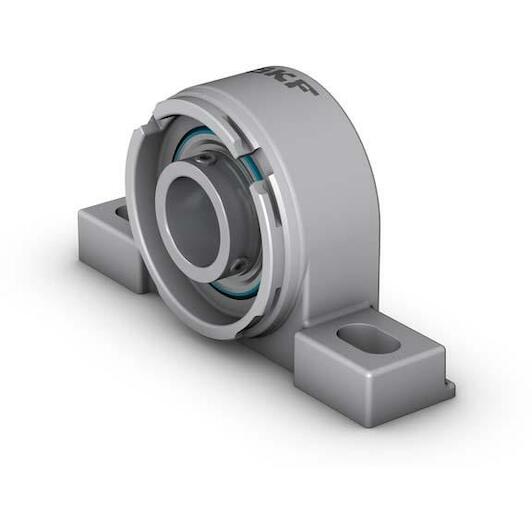

SKF P2BSS 40M-TPSS ball bearing unit 40 mm

Recommended Retail Price €917.03
453.95 tax incl.
€375.17 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/05/2026
each

  • Ordered before 20:00 - delivered as of 21/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a stainless-steel housing. They have a good corrosion resistance, and are suitable for applications with both constant and alternating directions of rotation. They have an inner ring extended on both sides and are locked onto the shaft by tightening a set screw on the inner ring, making them easy to mount.

  • Ready to mount
  • Designed for a constant and alternating rotation
  • Good corrosion resistance
  • Lubricated and sealed bearing
  • Quick locking onto the shaft
Key features according to our expert
  • Shaft diameter: 40 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Stainless steel
  • Material (bearing): Stainless steel
Specifications / All features
  • Brand: SKF
  • EAN: 07316581138036
  • Supplier number: SKF P2BSS 40M-TPSS
Shaft diameter
40 mm
Bore type
Cylindrical
Material (bearing housing)
Stainless steel
Material (bearing)
Stainless steel
Material, housing
Stainless steel
Grease fitting
Without
Centre height (pillow block)
49.2
Hexagonal key size for set screw
4
Note
Limiting speed with shaft tolerance h6
Basic static load rating
19
Housing type
Pillow block
Material, bearing
Stainless steel
Sealing, bearing
Seal and flinger on both sides
Sealing type
Contact, gutter
Rubber seating ring
Without
Lubricant
Grease
Number of bolt holes for fasteners
2
Application
For food and beverage applications
Centre distance between bolt holes
135.7
Bearing width, total
49.2
Basic dynamic load rating
24.7
Coating
Without
Housing overall width
42
Retaining feature, inner ring
Set screws
Relubrication hole
Without
Fastening bolt hole type
Plain
Limiting speed
2800
Sealing, unit
Optional end cover
Attachment bolt diameter
12
Set screw
M8x1
