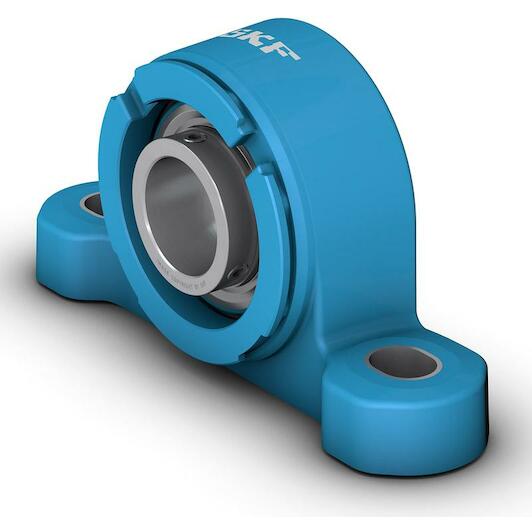

SKF P2BC 50M-TPSS ball bearing unit 50 mm

Recommended Retail Price €719.41
355.95 tax incl.
€294.17 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/07/2026
each

  • Ordered before 20:00 - delivered as of 27/07/2026
  • Free shipping
  • Delivery by DHL

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing that is lightweight but robust and has excellent corrosion resistance. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Designed for a constant and alternating rotation
  • Excellent corrosion resistance
  • Lightweight
  • Recyclable
Key features according to our expert
  • Shaft diameter: 50 mm
  • Product line: Blue Line
  • Material (bearing housing): Composite
  • Bore type: Cylindrical
  • Material (bearing): Stainless steel
Specifications / All features
  • Brand: SKF
  • EAN: 7316577848826
  • Supplier number: SKF P2BC 50M-TPSS
Shaft diameter
50 mm
Product line
Blue Line
Material (bearing housing)
Composite
Bore type
Cylindrical
Material (bearing)
Stainless steel
Number of bolt holes for fasteners
2
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, gutter
Sealing, bearing
Seal and flinger on both sides
Material, bearing
Stainless steel
Housing type
Pillow block
Basic static load rating
23.2
Note
Limiting speed with shaft tolerance h6
Hexagonal key size for set screw
5
Centre height (pillow block)
57.2
Grease fitting
Without
Material, housing
Composite for the SKF Food Line
Application
For food and beverage applications
Centre distance between bolt holes
159.5
Bearing width, total
51.6
Basic dynamic load rating
29.6
Coating
Without
Housing overall width
44
Retaining feature, inner ring
Set screws
Relubrication hole
Without
Fastening bolt hole type
Plain
Limiting speed
2200
Sealing, unit
Optional end cover
Attachment bolt diameter
16
Set screw
M10x1
