What types of loads can this bearing accommodate?

The SKF NKXR 45 Z bearing accommodates radial loads as well as axial loads in one direction.

What are the exact dimensions of this bearing?

It features an inside diameter of 45 mm, an outside diameter of 58 mm, and a width of 32 mm.

What is the purpose of the cover indicated by suffix Z?

The steel cover forms a gap-type seal that retains the lubricating grease inside the thrust bearing section.

Is this SKF combined bearing separable?

No, this bearing features a non-separable design for compact and straightforward mounting.

Where is this combined bearing typically used?

Its low cross-sectional height makes it ideal for compact machinery arrangements with combined radial and axial loads.

SKF NKXR 45 Z combination needle roller thrust bearing / cylindrical roller thrust bearing with cover 45 x 58 x 32 mm

Supplier number: SKF NKXR 45 Z | EAN 7316570484847

Recommended Retail Price €514.82

254.20 tax incl.

€210.08 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance for combined machinery loads

Practical benefits

Combined load handling capacity: You support both heavy radial forces and single-direction axial thrust within a single bearing unit.
Protective integrated end cap: The stamped steel cover of the Skf NKXR 45 Z retains lubricating grease and prevents contamination.
Compact low sectional height: You easily fit this robust assembly into tight machine designs where installation space is restricted.

In a nutshell

The right choise for

With the Skf nkxr 45 z combined needle roller and cylindrical roller thrust bearing, you accommodate high radial forces and single-direction axial thrust within a single compact unit. Thanks to its 45 x 58 x 32 mm dimensions and low cross-sectional height, you can easily install this non-separable bearing into tight mechanical arrangements such as industrial gearboxes, machine tool spindles, and drive shafts. The stamped steel end cover forms a gap-type seal that reliably retains lubricating grease while protecting against contamination. This simplifies your housing design and delivers dependable support under combined loads.

Product information FAQ

€254.20

In stock - tax incl.

Key features according to our expert

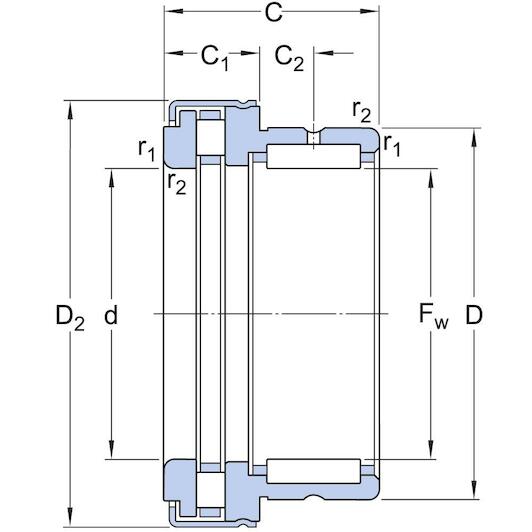

Inner diameter: 45 mm
Outer diameter: 58 mm
Width: 32 mm

Product description

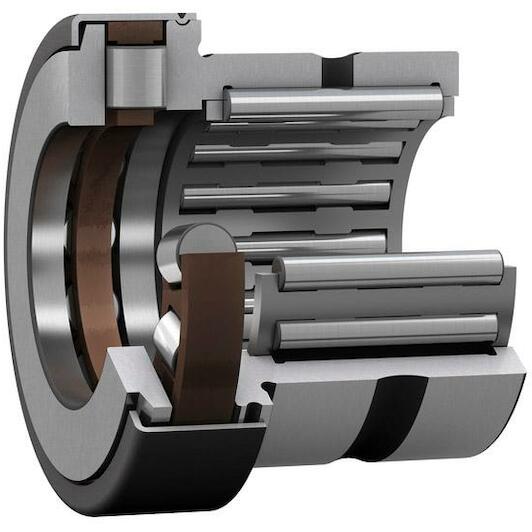

These bearings consist of a radial needle roller bearing combined with a cylindrical roller thrust bearing. Together they can accommodate both radial loads and axial loads in one direction. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space. The thrust part is capped with a cover that forms a gap-type seal to retain the grease in the bearings.

Accommodate radial and axial loads in one direction
High load carrying capacity
Low cross section
Non-separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 45 mm
Outer diameter: 58 mm
Width: 32 mm
Material, bearing: Bearing steel
Thrust part: With cage
Reference speed: 2200
Tolerance class: Other
Bearing part: Radial part without inner ring
Rolling element (thrust part): Rollers
Lubricant (thrust part): Grease
Special feature: Thrust part with stamped steel cover without lubrication holes
Limiting speed: 4500
Bore diameter: 45
Axial load capability: Single-direction
Radial part: With cage
Coating: Without
Outer diameter: 58
Rolling bearing type: Needle roller / cylindrical roller thrust bearing

Brand SKF
01291043
EAN 7316570484847
Supplier number SKF NKXR 45 Z

Frequently asked questions about this product

Answered by specialists

What types of loads can this bearing accommodate?: The SKF NKXR 45 Z bearing accommodates radial loads as well as axial loads in one direction.
What are the exact dimensions of this bearing?: It features an inside diameter of 45 mm, an outside diameter of 58 mm, and a width of 32 mm.
What is the purpose of the cover indicated by suffix Z?: The steel cover forms a gap-type seal that retains the lubricating grease inside the thrust bearing section.
Is this SKF combined bearing separable?: No, this bearing features a non-separable design for compact and straightforward mounting.
Where is this combined bearing typically used?: Its low cross-sectional height makes it ideal for compact machinery arrangements with combined radial and axial loads.
