SKF NKXR 40 combination needle roller thrust bearing / cylindrical roller thrust bearing 40 x 52 x 32 mm

Supplier number: SKF NKXR 40 | EAN 7316570757910
Recommended Retail Price €432.56
213.95 tax incl.
€176.82 excl. VAT (incl. all environmental contributions)
On order: delivered from 04/12/2026

  • Ordered before 20:00 - delivered as of 04/12/2026
  • Free shipping
  • Delivery by DHL


€213.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 40 mm
  • Width: 32 mm
  • Outer diameter: 52 mm

Product description

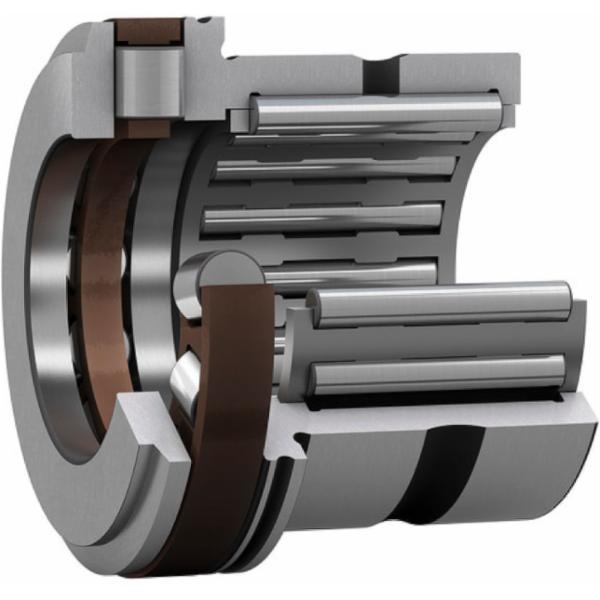

  • These bearings consist of a radial needle roller bearing combined with a cylindrical roller thrust bearing. Together they can accommodate both radial loads and axial loads in one direction. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.

Avantages

  • Accommodate radial and axial loads in one direction
  • High load carrying capacity
  • Low cross section
  • Separable design

Documents

All Features

Inner diameter
40 mm
Width
32 mm
Outer diameter
52 mm
Axial load capability
Single-direction
Material, bearing
Bearing steel
Thrust part
With cage
Reference speed
2400 r/min
Tolerance class
Other
Bearing part
Radial part without inner ring
Rolling element (thrust part)
Rollers
Lubricant (thrust part)
None
Limiting speed
5000 r/min
Radial part
With cage
Bore diameter
40 mm
Coating
Without
Outside diameter
52 mm
Rolling bearing type
Needle roller / cylindrical roller thrust bearing
  • Brand SKF
  • EAN 7316570757910
  • Supplier number SKF NKXR 40
