SKF

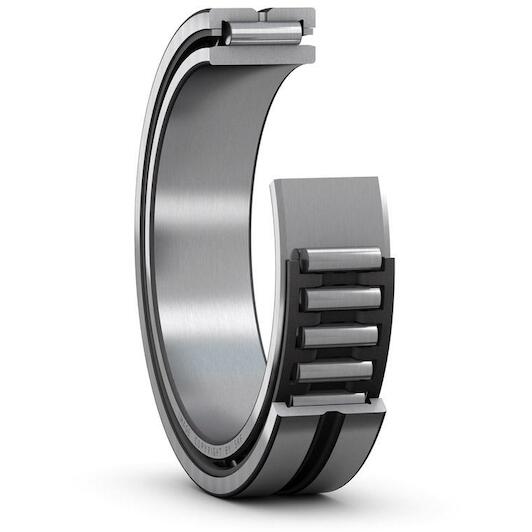

SKF NKI 75/35 needle roller bearing with inner ring 75x105x35 mm

Recommended Retail Price €1,696.35
839.80 tax incl.
€694.05 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Free shipping
  • Delivery by DHL

Product description

  • Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

Avantages

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 75 mm
  • Width: 35 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 105 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570267600
  • Supplier number: SKF NKI 75/35
Inner diameter
75 mm
Width
35 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
105 mm
Aligning feature
Without
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
CN
Lubricant
None
Basic static load rating
200 kN
Relubrication feature
With
Reference speed
4,800 r/min
Number of flanges, outer ring
2
Seal type
Not applicable
Cage
Sheet metal
Sealing
Without
Outer ring type
Machined (solid)
Limiting speed
5,300 r/min
Bore diameter
75 mm
Basic dynamic load rating
96.8 kN
Coating
Without
Outside diameter
105 mm
Material, bearing
Bearing steel
