SKF NKI 38/30 needle roller bearing with inner ring 38x53x30 mm

SKF
Supplier number: SKF NKI 38/30 | EAN 7316577120908
Recommended Retail Price €148.42
72.80 tax incl.
€60.17 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Ordered before 20:00 - delivered as of 21/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€72.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 38 mm
  • Width: 30 mm
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 53 mm

Product description

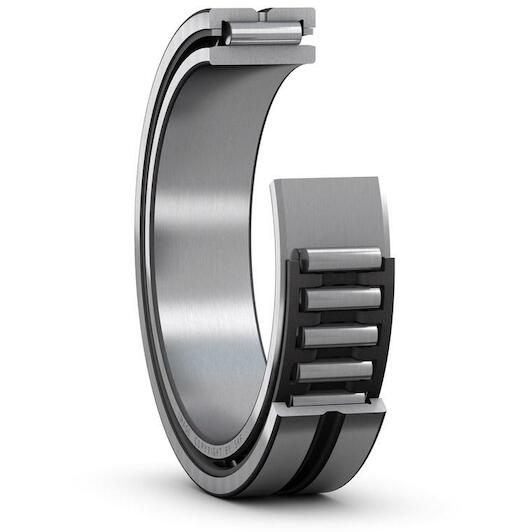

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
  • Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
38 mm
Width
30 mm
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
53 mm
Aligning feature
Without
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
CN
Reference speed
9500
Basic static load rating
90
Relubrication feature
With
Number of flanges, outer ring
2
Lubricant
None
Cage
Sheet metal
Sealing
Without
Outer ring type
Machined (solid)
Limiting speed
11000
Bore diameter
38
Basic dynamic load rating
40.2
Coating
Without
Outer diameter
53
Material, bearing
Bearing steel
  • Brand SKF
  • EAN 7316577120908
  • Supplier number SKF NKI 38/30
