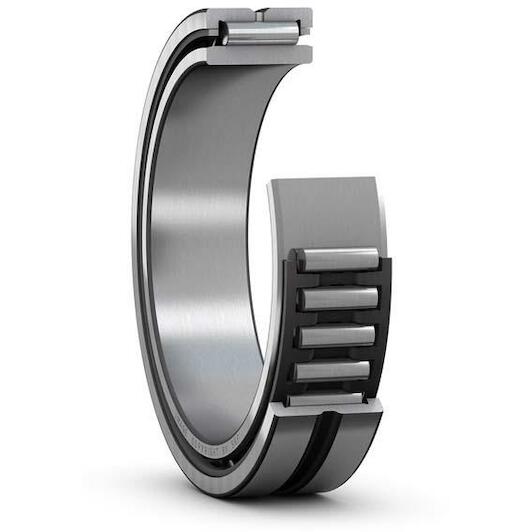

SKF NKI 30/20 TN Single-row needle roller bearing with solid rings, with collars 30 mm

Recommended Retail Price €92.03
45.20 tax incl.
€37.35 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 30 mm
  • Width: 20 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Plastic
  • Outer diameter: 45 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316573415879
  • Supplier number: SKF NKI 30/20 TN
Inner diameter
30 mm
Width
20 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Plastic
Outer diameter
45 mm
Aligning feature
Without
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
CN
Reference speed
11000
Basic static load rating
52
Relubrication feature
With
Number of flanges, outer ring
2
Lubricant
None
Cage
Non-metallic
Sealing
Without
Outer ring type
Machined (solid)
Limiting speed
13000
Bore diameter
30
Basic dynamic load rating
27.5
Coating
Without
Outside diameter
45
Material, bearing
Bearing steel
