What are the dimensions of this needle roller bearing?

The bearing has an inside diameter of 15 mm, an outside diameter of 27 mm, and a width of 16 mm.

Does this needle roller bearing include an inner ring?

Yes, the SKF NKI 15/16 comes with an inner ring, so a hardened shaft raceway is not required.

Does this SKF bearing have seals?

No, this is an open bearing without seals, suitable for lubrication with oil or grease.

How many rows of rollers does this bearing have?

This model is a single-row needle roller bearing with machined rings and integral flanges.

What material is the bearing cage made of?

The rollers are guided by a robust cage made of sheet steel or brass.

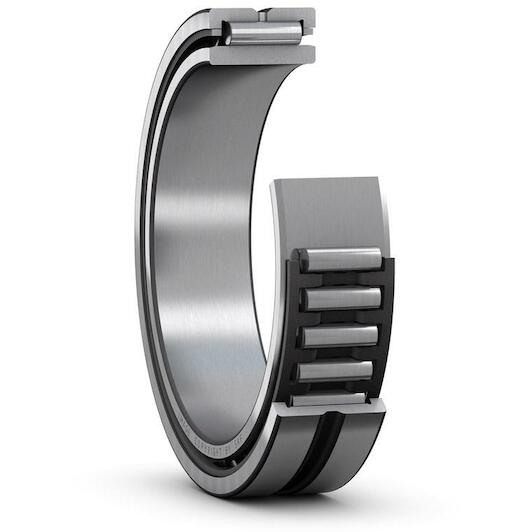

SKF NKI 15/16 needle roller bearing with inner ring 15x27x16 mm

Supplier number: SKF NKI 15/16 | EAN 7316577117861

Recommended Retail Price €59.17

29.20 tax incl.

€24.13 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High radial capacity in spaces

Practical benefits

High radial load capacity: The dense needle roller arrangement lets you handle heavy radial loads within extremely compact machine envelopes.
Integrated inner ring convenience: You can install directly onto standard shafts without needing a hardened or ground raceway surface.
Reliable high speed guidance: Built-in flanges and a durable cage ensure you maintain smooth, precise rotation during demanding continuous operations.

In a nutshell

The right choise for

With the Skf nki 15/16 single-row needle roller bearing, you handle heavy radial loads within compact installation spaces where standard bearings are too large. The included inner ring allows you to mount directly onto standard shafts without requiring a hardened or ground raceway surface. Solid machined rings with integral flanges and a durable brass sheet cage keep the needle rollers precisely aligned for stable operation. Measuring 15X27X16 mm, this open bearing is suitable for oil or grease lubrication, effectively reducing friction and wear in gearboxes, transmissions, pumps, and industrial machinery assemblies.

Product information FAQ

€29.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 15 mm
Width: 16 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 27 mm

Product description

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 15 mm
Width: 16 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 27 mm
Aligning feature: Without
Bearing part: Complete bearing
Tolerance class: Normal
Radial internal clearance: CN
Reference speed: 20000
Basic static load rating: 19
Relubrication feature: With
Number of flanges, outer ring: 2
Lubricant: None
Cage: Sheet metal
Sealing: Without
Outer ring type: Machined (solid)
Limiting speed: 24000
Bore diameter: 15
Basic dynamic load rating: 13.4
Coating: Without
Outer diameter: 27
Material, bearing: Bearing steel

Brand SKF
01290036
EAN 7316577117861
Supplier number SKF NKI 15/16

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this needle roller bearing?: The bearing has an inside diameter of 15 mm, an outside diameter of 27 mm, and a width of 16 mm.
Does this needle roller bearing include an inner ring?: Yes, the SKF NKI 15/16 comes with an inner ring, so a hardened shaft raceway is not required.
Does this SKF bearing have seals?: No, this is an open bearing without seals, suitable for lubrication with oil or grease.
How many rows of rollers does this bearing have?: This model is a single-row needle roller bearing with machined rings and integral flanges.
What material is the bearing cage made of?: The rollers are guided by a robust cage made of sheet steel or brass.
