SKF

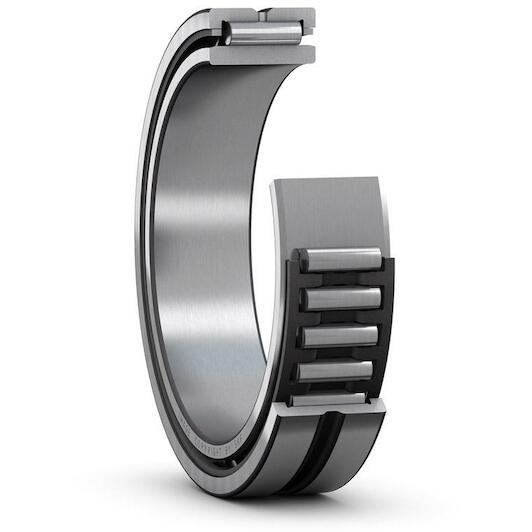

SKF NKI 100/40 needle roller bearing with inner ring 100x130x40 mm

Recommended Retail Price €892.90
438.60 tax incl.
€362.48 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 40 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 130 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570922325
  • Supplier number: SKF NKI 100/40
Inner diameter
100 mm
Width
40 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
130 mm
Aligning feature
Without
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
CN
Skf performance class
SKF Explorer
Basic static load rating
305
Relubrication feature
With
Reference speed
3600
Number of flanges, outer ring
2
Lubricant
None
Cage
Sheet metal
Sealing
Without
Outer ring type
Machined (solid)
Limiting speed
4000
Bore diameter
100
Basic dynamic load rating
143
Coating
Without
Outside diameter
130
Material, bearing
Bearing steel
