SKF

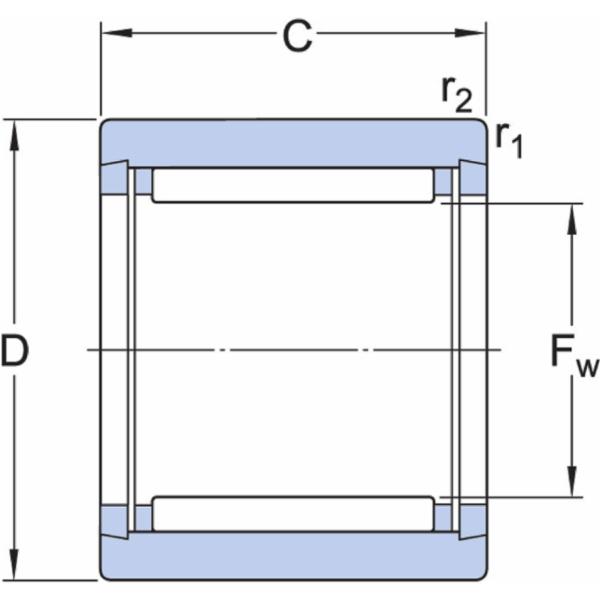

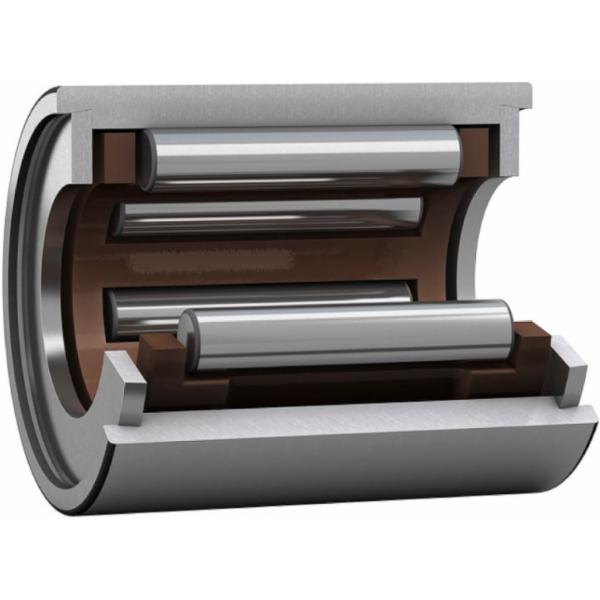

SKF NK 9/16 TN needle roller bearing without inner ring 9x16x16 mm

This article is not available

Product description:

  • Needle roller bearings have a high load capacity despite a small diameter due to their cylindrical shape
  • This makes needle roller bearings particularly suitable where radial space is limited
Key features according to our expert
  • Inner diameter: 9 mm
  • Width: 16 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Plastic
  • Outer diameter: 16 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577012463
  • Supplier number: SKF NK 9/16 TN
Inner diameter
9 mm
Width
16 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Plastic
Outer diameter
16 mm
Bore diameter of needle roller complement
9 mm
Tolerance class
Normal
Aligning feature
Without
Basic static load rating
7.2 kN
Lubricant
None
Relubrication feature
Without
Reference speed
30,000 r/min
Sealing
Without
Seal type
Not applicable
Cage
Non-metallic
Bearing part
Bearing without inner ring
Number of flanges, outer ring
2
Outer ring type
Machined (solid)
Limiting speed
34,000 r/min
Basic dynamic load rating
5.72 kN
Coating
Without
Outside diameter
16 mm
Material, bearing
Bearing steel
