SKF

SKF NK 7/10 TN needle roller bearing without inner ring 7x14x10 mm

Recommended Retail Price €31.15
15.40 tax incl.
€12.73 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

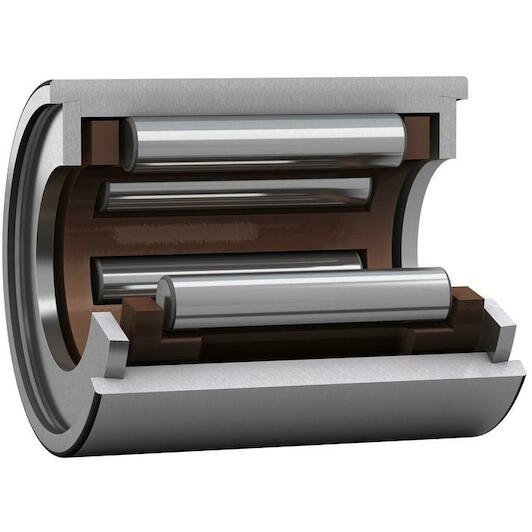

  • Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two non-separable closure rings that act as flanges to guide the bearing axially.

Avantages

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
Key features according to our expert
  • Inner diameter: 7 mm
  • Width: 10 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Plastic
  • Outer diameter: 14 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577012449
  • Supplier number: SKF NK 7/10 TN
Inner diameter
7 mm
Width
10 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Plastic
Outer diameter
14 mm
Bore diameter of needle roller complement
7 mm
Tolerance class
Normal
Aligning feature
Without
Basic static load rating
2.75 kN
Lubricant
None
Relubrication feature
Without
Reference speed
32,000 r/min
Sealing
Without
Seal type
Not applicable
Cage
Non-metallic
Bearing part
Bearing without inner ring
Number of flanges, outer ring
2
Outer ring type
Machined (solid)
Limiting speed
36,000 r/min
Basic dynamic load rating
2.81 kN
Coating
Without
Outside diameter
14 mm
Material, bearing
Bearing steel
