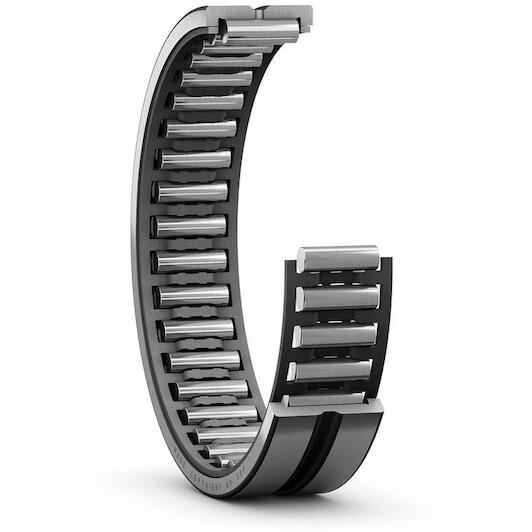

SKF NK 30/30 TN needle roller bearing without inner ring 30x40x30 mm

Recommended Retail Price €72.50
35.60 tax incl.
€29.42 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

  • Ordered before 20:00 - delivered as of 22/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
Key features according to our expert
  • Inner diameter: 30 mm
  • Width: 30 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Plastic
  • Outer diameter: 40 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316572175965
  • Supplier number: SKF NK 30/30 TN
Inner diameter
30 mm
Width
30 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Plastic
Outer diameter
40 mm
Basic static load rating
72
Bearing part
Bearing without inner ring
Tolerance class
Normal
Aligning feature
Without
Reference speed
13000
Bore diameter of needle roller complement
30
Relubrication feature
With
Number of flanges, outer ring
2
Lubricant
None
Cage
Non-metallic
Sealing
Without
Basic dynamic load rating
36.9
Outer ring type
Machined (solid)
Limiting speed
15000
Coating
Without
Outside diameter
40
Material, bearing
Bearing steel
