What are the dimensions of this needle roller bearing?

The inside diameter is 20 mm, the outside diameter is 28 mm, and the width is 20 mm.

Does this needle roller bearing include an inner ring?

No, this bearing is designed without an inner ring. Rollers run directly on a hardened and ground shaft.

What are the load ratings for this bearing?

It features a basic dynamic load rating of 16.5 kN and a basic static load rating of 25.5 kN for radial loads.

Does this bearing have integrated seals?

No, this is an open bearing without seals and requires external lubrication.

What material is the cage made from?

The cage of this SKF NK 20/20 bearing is made from sheet steel.

SKF NK 20/20 needle roller bearing without inner ring 20x28x20 mm

Supplier number: SKF NK 20/20 | EAN 7316577117946

Recommended Retail Price €50.31

24.80 tax incl.

€20.49 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Compact performance with Skf

Practical benefits

Minimal radial space required: Designing without an inner ring allows you to mount directly onto a hardened shaft for a low cross-sectional height.
High radial load capacity: The numerous needle rollers reliably support heavy radial loads while maintaining high assembly stiffness.
Durable sheet steel cage: The sturdy pressed steel cage guides rollers accurately to reduce friction during demanding mechanical operation.

In a nutshell

The right choise for

When you need high radial load capacity within tight installation spaces, the Skf nk 20/20 single row needle roller bearing delivers the right performance. Designed without an inner ring, it mounts directly onto a 20 mm hardened and ground shaft, saving valuable cross-sectional space in gearboxes, reducers, and pump mechanisms. Its needle rollers handle a dynamic load rating of 16.5 kN and a static load rating of 25.5 kN while ensuring rigid guidance. With a durable sheet steel cage that aligns the rollers accurately to reduce friction, this open bearing with 28 mm outside diameter and 20 mm width keeps your machinery running smoothly.

Product information FAQ

€24.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Width: 20 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Sheet steel
Outer diameter: 28 mm

Product description

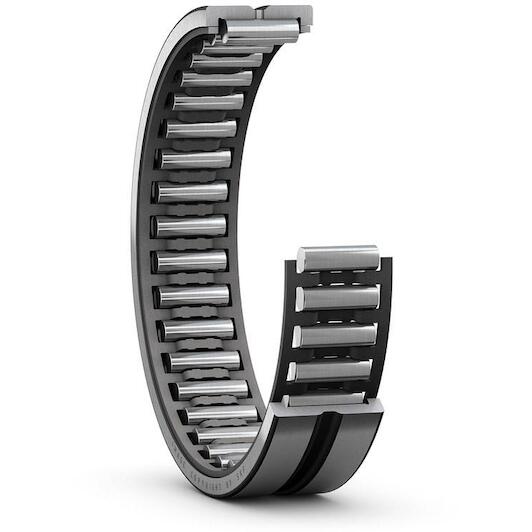

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Width: 20 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Sheet steel
Outer diameter: 28 mm
Basic static load rating: 25.5
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Reference speed: 19000
Bore diameter of needle roller complement: 20
Relubrication feature: With
Number of flanges, outer ring: 2
Lubricant: None
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 16.5
Outer ring type: Machined (solid)
Limiting speed: 22000
Coating: Without
Outer diameter: 28
Material, bearing: Bearing steel

Brand SKF
01290073
EAN 7316577117946
Supplier number SKF NK 20/20

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this needle roller bearing?: The inside diameter is 20 mm, the outside diameter is 28 mm, and the width is 20 mm.
Does this needle roller bearing include an inner ring?: No, this bearing is designed without an inner ring. Rollers run directly on a hardened and ground shaft.
What are the load ratings for this bearing?: It features a basic dynamic load rating of 16.5 kN and a basic static load rating of 25.5 kN for radial loads.
Does this bearing have integrated seals?: No, this is an open bearing without seals and requires external lubrication.
What material is the cage made from?: The cage of this SKF NK 20/20 bearing is made from sheet steel.
