SKF NK 17/16 needle roller bearing without inner ring 17x25x16 mm

1 review(s)

Recommended Retail Price €40.14

19.80 tax incl.

€16.36 excl. VAT (incl. all environmental contributions)

SKF NK 17/16 needle roller bearing without inner ring 17x25x16 mm

€19.80 Recommended Retail Price €40.14

On order: delivered from 22/05/2026

each

Ordered before 20:00 - delivered as of 22/05/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

Product information
Additional info
Reviews

Product description

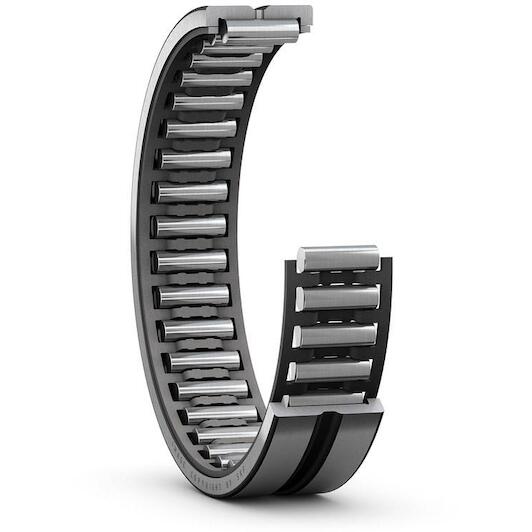

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions

Key features according to our expert

Inner diameter: 17 mm
Width: 16 mm
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Sheet steel
Outer diameter: 25 mm

Specifications / All features

Brand: SKF
01290072
EAN: 7316577012524
Supplier number: SKF NK 17/16

Inner diameter: 17 mm
Width: 16 mm
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Sheet steel
Outer diameter: 25 mm
Basic static load rating: 16.6
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Reference speed: 22000
Bore diameter of needle roller complement: 17
Relubrication feature: With
Number of flanges, outer ring: 2
Lubricant: None
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 12.1
Outer ring type: Machined (solid)
Limiting speed: 26000
Coating: Without
Outside diameter: 25
Material, bearing: Bearing steel
