SKF

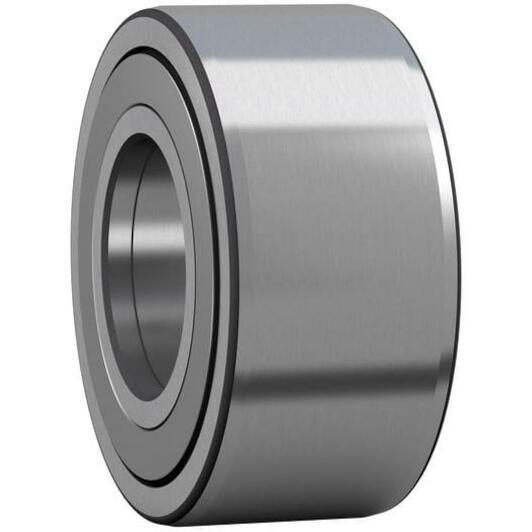

SKF NATV 8 PPA support roller with inner ring and flange seal (Yoke-type idler) 24 x 8 x 15 mm - NATV 8 PP

Recommended Retail Price €87.94
43.40 tax incl.
€35.87 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 7 products in stock.
each

  • Ordered before 20:00 - delivered tomorrow 16/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

  • High radial load carrying capacity
  • Accommodate axial loads due to skew or tilting
  • Long service life
  • Ready to mount
  • Sealed for increased reliability, with relubrication feature
Key features according to our expert
  • Inner diameter: 8 mm
  • Width: 15 mm
  • Outer diameter: 24 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570892956
  • Supplier number: SKF NATV 8 PP
Inner diameter
8 mm
Width
15 mm
Outer diameter
24 mm
Axial guidance of outer ring
Yes
Rolling elements
Needle rollers
Functional outside diameter
24
Material, bearing
Bearing steel
Cage
Without
Sealing type
Contact
Width, outer ring
14
Lubricant
Grease
Relubrication feature
With
Basic static load rating
11.6
Radial internal clearance
Between C2 and CN
Tolerance class
Other
Bearing part
Complete track roller
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
15
Outer ring profile
Crowned
Limiting speed
3600
Bore diameter
8
Number of rows
1
Basic dynamic load rating
7.48
Coating
Without
Application
Support roller
