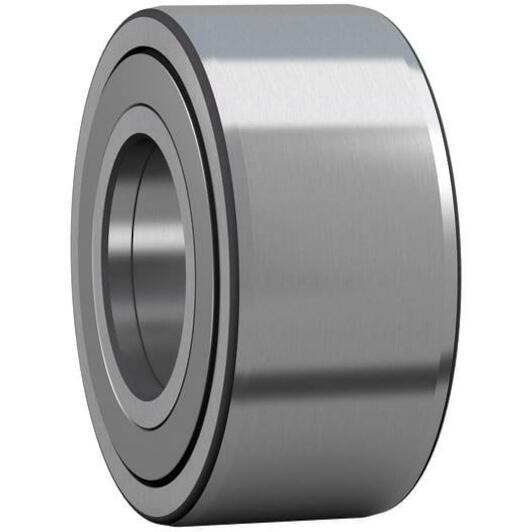

SKF NATV 15 PPXA support roller with inner ring and flange seal (Yoke type track roller) 35 x 15 x 19 mm

SKF
Supplier number: SKF NATV 15 PPXA | EAN 7316571589992
Recommended Retail Price €173.94
85.95 tax incl.
€71.03 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Ordered before 20:00 - delivered as of 22/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€85.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 15 mm
  • Outer diameter: 35 mm
  • Width: 19 mm

Product description:

  • Support roller with axial guide, with seals

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
15 mm
Outer diameter
35 mm
Width
19 mm
Functional outside diameter
35 mm
Material, bearing
Bearing steel
Cage
Without
Sealing type
Contact
Width, outer ring
18 mm
Lubricant
Grease
Relubrication feature
With
Basic static load rating
23.2 kN
Radial internal clearance
Between C2 and CN
Tolerance class
Other
Bearing part
Complete track roller
Axial guidance of outer ring
Yes
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
19 mm
Outer ring profile
Cylindrical
Limiting speed
2,600 r/min
Bore diameter
15 mm
Number of rows
1
Basic dynamic load rating
12.3 kN
Coating
Without
Rolling elements
Needle rollers
  • Brand SKF
  • EAN 7316571589992
  • Supplier number SKF NATV 15 PPXA
