SKF

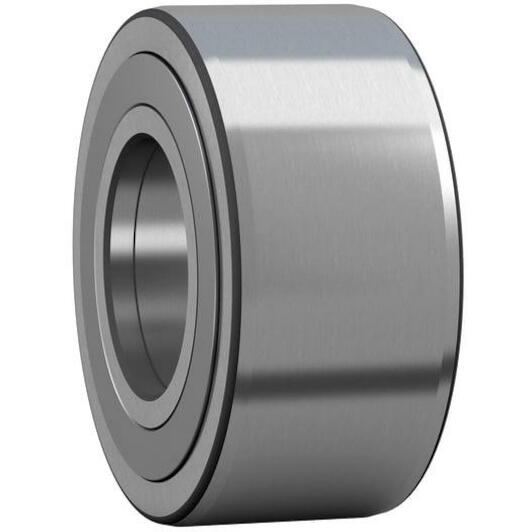

SKF NATR 5 support roller with inner ring and flange seal (Yoke type track roller) 16 x 5 x 12 mm

Recommended Retail Price €66.83
32.95 tax incl.
€27.23 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 8 products in stock.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. A narrow gap between the outer ring and the pressed-on flange rings forms a gap-type seal. The inner ring contains a lubrication hole to facilitate relubrication.

  • High radial load carrying capacity
  • Accommodate axial loads due to skew or tilting
  • Long service life
  • Ready to mount
  • Sealed for increased reliability, with relubrication feature
Key features according to our expert

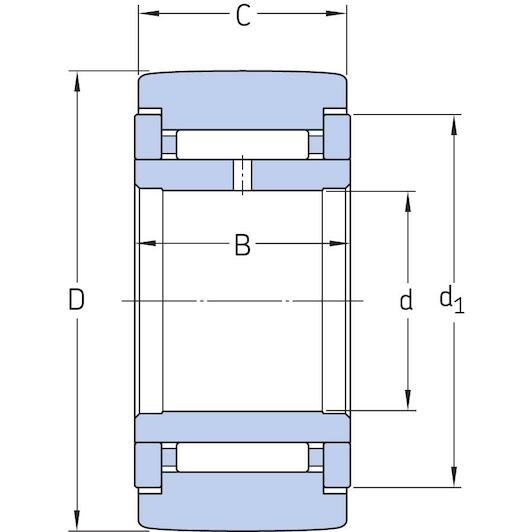

  • Inner diameter: 5 mm
  • Width: 12 mm
  • Outer diameter: 16 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577104311
  • Supplier number: SKF NATR 5
Inner diameter
5 mm
Width
12 mm
Outer diameter
16 mm
Axial guidance of outer ring
Yes
Rolling elements
Needle rollers
Functional outside diameter
16
Material, bearing
Bearing steel
Cage
With
Sealing type
Gap-type
Width, outer ring
11
Lubricant
Grease
Relubrication feature
With
Basic static load rating
3
Radial internal clearance
Between C2 and CN
Tolerance class
Other
Bearing part
Complete track roller
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
12
Outer ring profile
Crowned
Limiting speed
6000
Bore diameter
5
Number of rows
1
Basic dynamic load rating
2.86
Coating
Without
Application
Support roller
