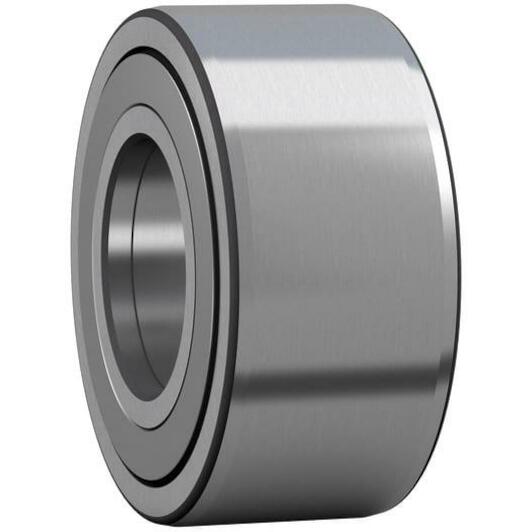

SKF NATR 5 PPXA support roller with inner ring and flange seal (Yoke type track roller) 16 x 5 x 12 mm - NATR 5 PPX

Show more features

Inner diameter

5 mm

Outer diameter

16 mm

Width

12 mm

Functional outside diameter

16 mm

Material, bearing

Bearing steel

Cage

With

Sealing type

Contact

Width, outer ring

11 mm

Lubricant

Grease

Relubrication feature

With

Basic static load rating

3 kN

Radial internal clearance

Between C2 and CN

Tolerance class

Other

Bearing part

Complete track roller

Axial guidance of outer ring

Yes

Number of flanges, outer ring

2

Sealing

Seal on both sides

Width, total

12 mm

Outer ring profile

Cylindrical

Limiting speed

6,000 r/min

Bore diameter

5 mm

Number of rows

1

Basic dynamic load rating

2.86 kN

Coating

Without

Rolling elements

Needle rollers
