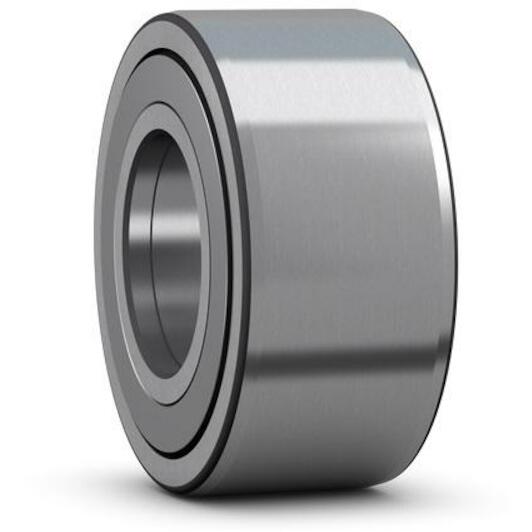

SKF NATR 17 PP support roller (yoke type) with track collars, sealing on both sides and relubrication option 17 mm

SKF
Supplier number: SKF NATR 17 PP | EAN 7316570059342
Recommended Retail Price €146.39
72.20 tax incl.
€59.67 excl. VAT (incl. all environmental contributions)
On order: delivered from 14/10/2026

  • Ordered before 20:00 - delivered as of 14/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
✆ Talk to a specialist


Product information
€72.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 17 mm
  • Outer diameter: 40 mm
  • Width: 21 mm

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

  • High radial load carrying capacity
  • Accommodate axial loads due to skew or tilting
  • Long service life
  • Ready to mount
  • Sealed for increased reliability, with relubrication feature

All Features

Inner diameter
17 mm
Outer diameter
40 mm
Width
21 mm
Rolling elements
Needle rollers
Functional outside diameter
40
Material, bearing
Bearing steel
Cage
With
Sealing type
Contact
Width, outer ring
20
Lubricant
Grease
Relubrication feature
With
Basic static load rating
15
Tolerance class
Other
Bearing part
Complete track roller
Axial guidance of outer ring
Yes
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
21
Outer ring profile
Crowned
Limiting speed
3200
Bore diameter
17
Number of rows
1
Basic dynamic load rating
12.5
Coating
Without
Application
Support roller
  • Brand SKF
  • EAN 7316570059342
  • Supplier number SKF NATR 17 PP
