SKF

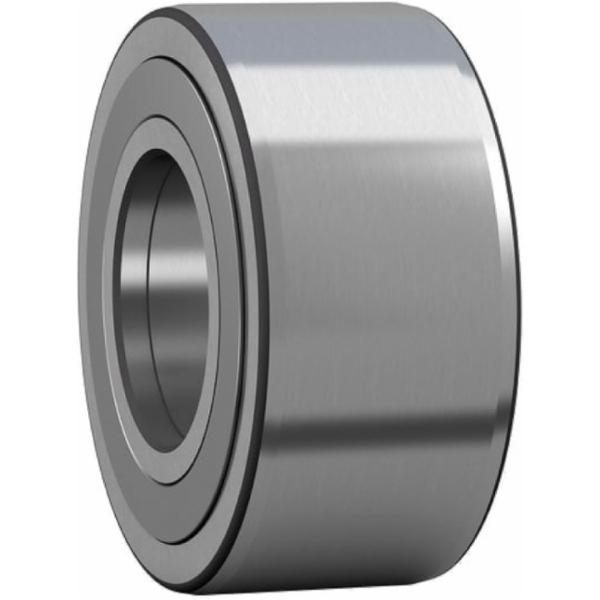

SKF NATR 10 X support roller with inner ring and flange seal (Yoke type track roller) 30 x 10 x 15 mm

This article is not available

Product description:

  • Support roller with axial guide without seals
Key features according to our expert
  • Inner diameter: 10 mm
  • Width: 15 mm
  • Outer diameter: 30 mm

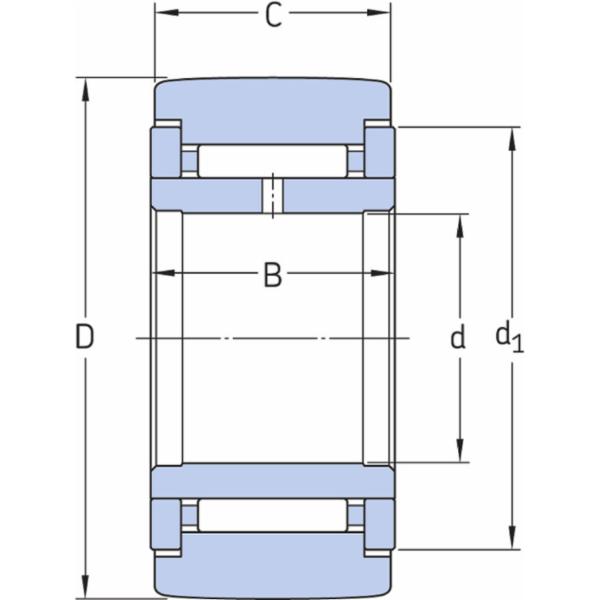

Specifications / All features
  • Brand: SKF
  • EAN: 7316570251463
  • Supplier number: SKF NATR 10 X
Inner diameter
10 mm
Width
15 mm
Outer diameter
30 mm
Axial guidance of outer ring
Yes
Functional outside diameter
30 mm
Material, bearing
Bearing steel
Cage
With
Sealing type
Gap-type
Width, outer ring
14 mm
Lubricant
Grease
Relubrication feature
With
Basic static load rating
6.4 kN
Radial internal clearance
Between C2 and CN
Tolerance class
Other
Bearing part
Complete track roller
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
15 mm
Outer ring profile
Cylindrical
Limiting speed
4,500 r/min
Bore diameter
10 mm
Number of rows
1
Basic dynamic load rating
6.82 kN
Coating
Without
Rolling elements
Needle rollers
