SKF

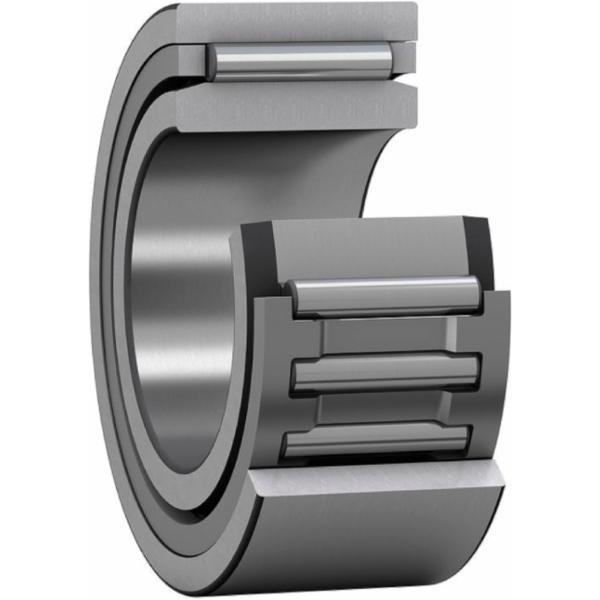

SKF NAO 12X24X13 needle roller bearing with inner ring 12x24x13 mm

This article is not available

Product description:

  • Needle roller bearings have a high load capacity despite a small diameter due to their cylindrical shape
  • This makes needle roller bearings particularly suitable where radial space is limited
Key features according to our expert
  • Inner diameter: 12 mm
  • Width: 13 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 24 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570604542
  • Supplier number: SKF NAO 12X24X13
Inner diameter
12 mm
Width
13 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
24 mm
Basic static load rating
12 kN
Tolerance class
Normal
Radial internal clearance
CN
Aligning feature
Without
Lubricant
None
Relubrication feature
Without
Reference speed
24,000 r/min
Sealing
Without
Seal type
Not applicable
Cage
Sheet metal
Bearing part
Complete bearing
Bore diameter
12 mm
Number of flanges, outer ring
0
Outer ring type
Machined (solid)
Limiting speed
26,000 r/min
Basic dynamic load rating
8.58 kN
Coating
Without
Outside diameter
24 mm
Material, bearing
Bearing steel
