SKF

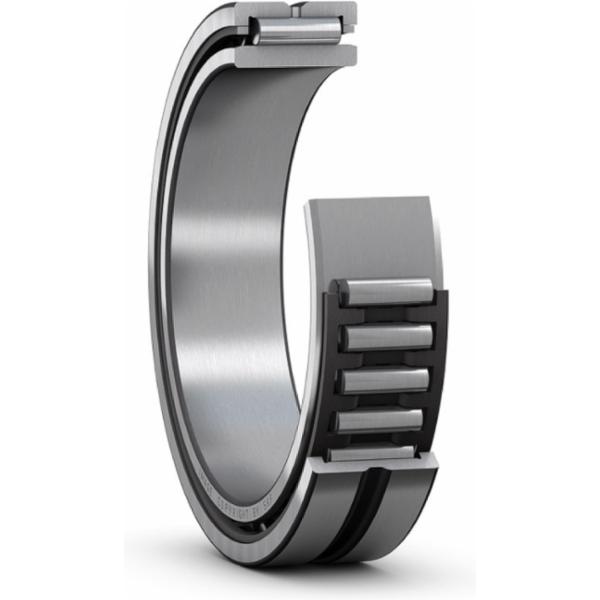

SKF NA 69/22 needle roller bearing with inner ring 22x39x30 mm

This article is not available

Product description:

  • Needle roller bearings have a high load capacity despite a small diameter due to their cylindrical shape
  • This makes needle roller bearings particularly suitable where radial space is limited
Key features according to our expert
  • Inner diameter: 22 mm
  • Width: 30 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 39 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570483925
  • Supplier number: SKF NA 69/22
Inner diameter
22 mm
Width
30 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
39 mm
Basic static load rating
57 kN
Tolerance class
Normal
Radial internal clearance
CN
Aligning feature
Without
Lubricant
None
Relubrication feature
With
Reference speed
14,000 r/min
Sealing
Without
Seal type
Not applicable
Cage
Sheet metal
Bearing part
Complete bearing
Bore diameter
22 mm
Number of flanges, outer ring
2
Outer ring type
Machined (solid)
Limiting speed
15,000 r/min
Basic dynamic load rating
36.9 kN
Coating
Without
Outside diameter
39 mm
Material, bearing
Bearing steel
