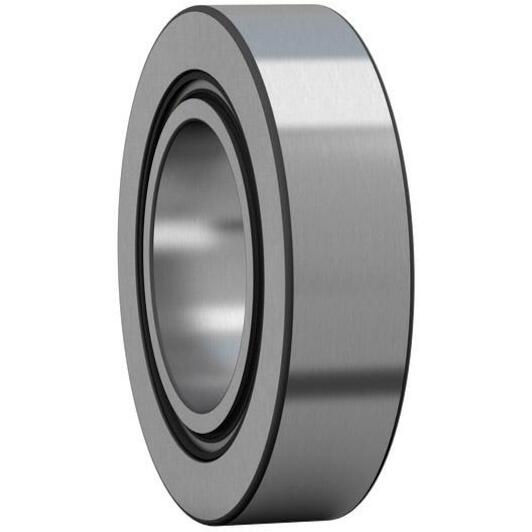

SKF NA 2208.2RS support roller with inner ring (Yoke-type idler) 80 x 40 x 23 mm

Show more features

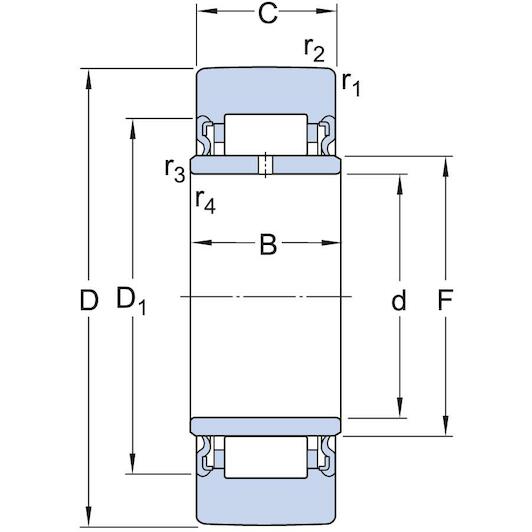

Inner diameter

40 mm

Outer diameter

80 mm

Width

23 mm

Functional outside diameter

80 mm

Material, bearing

Bearing steel

Cage

With

Sealing type

Contact

Width, outer ring

22.7 mm

Lubricant

Grease

Relubrication feature

With

Basic static load rating

40.5 kN

Radial internal clearance

CN

Tolerance class

Other

Bearing part

Complete track roller

Axial guidance of outer ring

Yes

Number of flanges, outer ring

2

Sealing

Seal on both sides

Width, total

23 mm

Outer ring profile

Crowned

Limiting speed

1,900 r/min

Bore diameter

40 mm

Number of rows

1

Basic dynamic load rating

27.5 kN

Coating

Without

Rolling elements

Needle rollers
