SKF

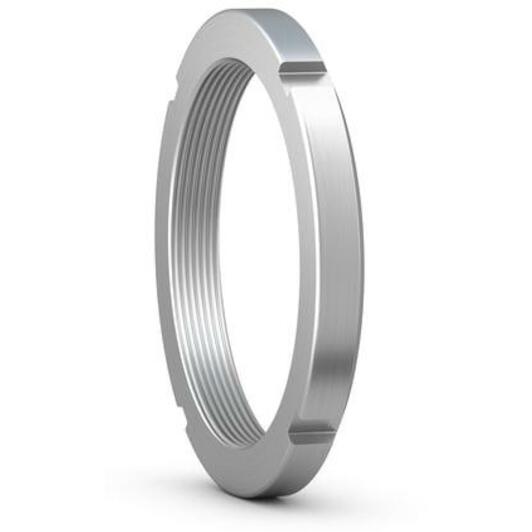

SKF N 05 locknut with inch thread, for locking with washer or washer plate 24.6126 mm

Recommended Retail Price €21.14
10.40 tax incl.
€8.59 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

  • N lock nuts are used to locate bearings onto a shaft. They have inch threads and four, equally spaced slots around their circumference to accommodate a spanner. They should be locked by a lock washer or locking plate to prevent unintentional loosening. N lock nuts can be reused, provided they are not damaged.

Avantages

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new locking device
  • Require a keyway in the shaft or adapter sleeve
Key features according to our expert
  • Outer diameter: 39,827 mm
  • Width: 10,566 mm
  • Thread dimension: 0,969-32
Specifications / All features
  • Brand: SKF
  • EAN: 7316571278735
  • Supplier number: SKF N 05

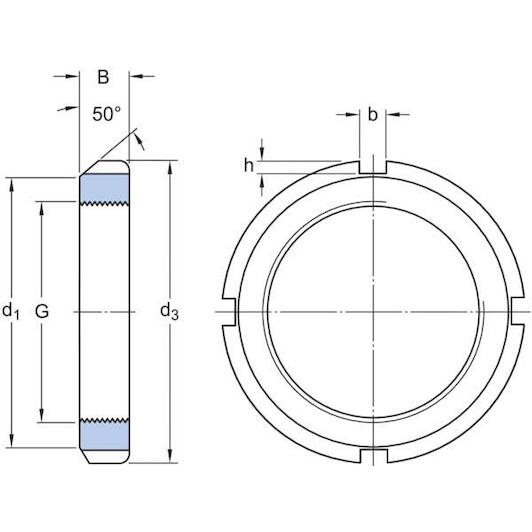

Outer diameter
39,827 mm
Width
10,566 mm
Thread dimension
0,969-32
Outside diameter
39.8272 mm
Bore diameter
24.6126 mm
Associated mounting tool
HN 5-6
Nut for hydraulic mounting
No
Locking device
Lock washer
Thread designation
0.969-32
