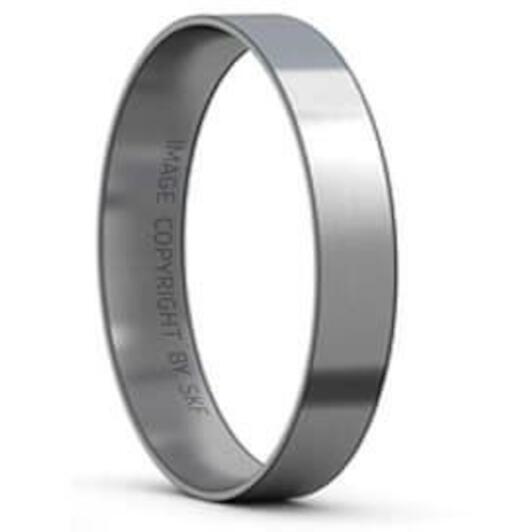

SKF LM 501310/Q outer ring 73.4 x 14.7 mm 14.9°

SKF
Supplier number: SKF LM 501310/Q | EAN 7316570482409
Recommended Retail Price €32.82
16.20 tax incl.
€13.39 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Ordered before 20:00 - delivered as of 21/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€16.20
tax incl.

Product information

Key features according to our expert

  • Outer diameter: 73,431 mm
  • Width: 14,732 mm

Product description

Tapered roller bearing cups (outer ring) are intended to be combined with cones (inner ring with rollers and cage) from the same series. Together they create a complete bearing that accommodates combined radial and axial loads and provides low friction during operation. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable design
  • Various series available to accommodate prevailing loads in application

Documents

⤓ Technical data sheet PDF

All Features

Outer diameter
73,431 mm
Width
14,732 mm
Width, outer ring
14.732
Relubrication feature
Without
Matched arrangement
No
Bearing part
Outer ring (cup)
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Width, total
14.732
Contact angle
14.916666666704
Coating
Without
Outer diameter
73.431
Unit system
Inch
  • Brand SKF
  • EAN 7316570482409
  • Supplier number SKF LM 501310/Q
