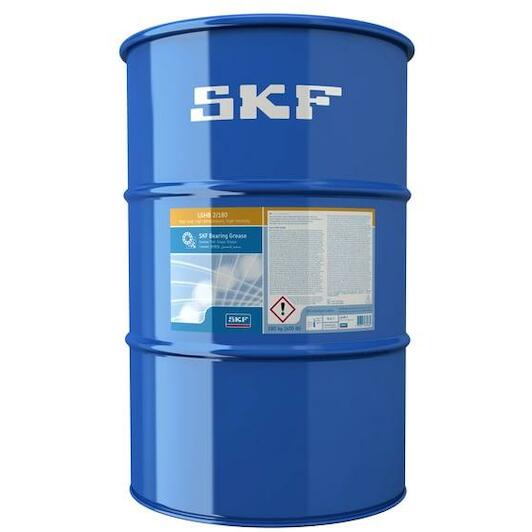

SKF LGHB 2/180 high load, high temperature, high viscosity bearing grease (180 kg drum)

Show more features

Weight

180 kg

Packaging

Barrel

Suitable for applications with severe vibrations

+

Mechanical stability - roll stability, astm d1831 (max.) 50 hrs at 80°c, 10¯¹mm

-20 to +50

Base oil type

Mineral

Suitable for applications with oscilating movements

++

Ep performance - 4 ball - weld load (min.) din 51350/4

4000

Operating temperature range

-20-150

Penetration din iso 2137, prolonged (max.), 100 000 strokes, 10¯¹mm

-20 to +50

Corrosion protection, emcor, iso 11007 modified, 0.5% nacl

0-0

Din 51825 code

KP2N-20

Nlgi consistency class

2

Mechanical stability, v2f test, 144 hrs

M

Suitable for applications that require rust protection

++

Suitable for applications that require water resistance

++

Oil separation din 51817, 40°c, %

1-3 at 60°C

Ep performance - 4 ball - wear scar (max.) din 51350/5, 1400n

2

Base oil viscosity din 51562 at 100 °c

27.5

Lubrication ability, r2f test b at 120°c

Pass at 140°C

Available for single point lubrication

yes

Speed (max.) n x dm (x 1000)

300

Recommended applications

Plain bearings;Conveyors;Applications with high loads and low speed

Shelf life

5

Color code

Brown

Packsize

180 kg drum

Suitable for applications that require frequent start-up

++

Penetration din iso 2137, worked, 60 strokes (10¯¹mm)

265 - 295

Dropping point (min) iso 2176

220

Rolling bearing grease life (max.) rof test, l50 life, 10000 r/min, hrs at °c

1000 at 130°C

Suitable for high load applications

++

Suitable for vertical shaft applications

O

Corrosion protection, emcor, iso 11007 modified, water washout

0-0

Copper corrosion (max.) din 51811 /astm d4048, 24 hrs at 100°c

2 max. at 150°C

Corrosion protection, emcor, iso 11007, distilled water

0-0

Thickener

Calcium sulphonate complex

Water resistance (max.) din 51807/1, 3 hrs at 90 °c

1
