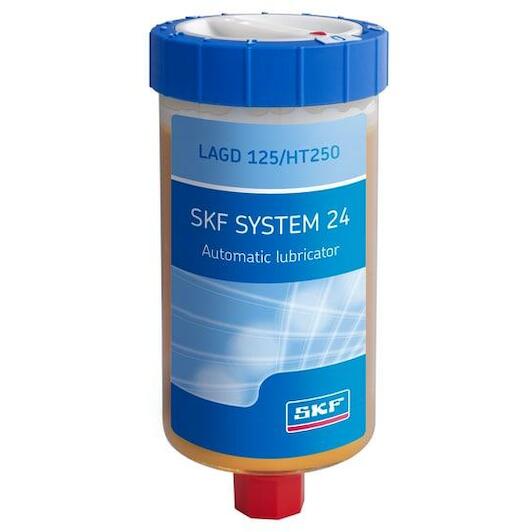

SKF LAGD 125/HT250 gas-powered automatic single-point lubrication system with LHTT 250 chain oil 125 ml

Supplier number: SKF LAGD 125/HT250 | EAN 7316579652018

Recommended Retail Price €53.18

49.40 tax incl.

€40.83 excl. VAT (incl. all environmental contributions)

On order: delivered from 21/10/2026

The minimum purchase order quantity for the product is 10.

Ordered before 20:00 - delivered as of 21/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Product information

€49.40

tax incl.

Key features according to our expert

Capacity: 125 ml
Connection size: 1/4"
Connection type: External thread
Thread type: BSPT
Max. working pressure: 5 bar
Weight: 0,19 kg

Product description

The SKF SYSTEM 24 LAGD 125/HT250 is filled with SKF LHHT 250 chain oil, recommended for chains operating in an environment with high ambient temperatures and high loads. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

Flexible dispense rate from 1 to 12 months
ATEX zone 0 approved
Transparent lubricant container allows visual inspection of dispense rate
Compact size, suitable for restrictive areas
Improved reliability and optimized maintenance

All Features

Capacity: 125 ml
Connection size: 1/4"
Connection type: External thread
Thread type: BSPT
Max. working pressure: 5 bar
Weight: 0,19 kg
Recommended applications: Chains at high temperatures and high loads
Connecting thread: R 1/4
Ambient temperature range: -20-60
Maximum pressure: 5
Lubricant quantity: 125
Recommended storage temperature: 20 °C
Nominal emptying time: 1-12
Power source: Gas cell
Intrinsically safe approval: II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Lubricant: LHHT 250
Lubricant description: High-performance and high temperature synthetic chain oil
Degree of protection (ip): IP 68
Shelf life: 2
Drive mechanism: Gas cell producing inert gas
Maximum feed line length: 0.3
