What lubricant is prefilled in this SKF SYSTEM 24 lubricator?

It contains 125 ml of SKF LGFG 2 food-grade bearing grease, certified NSF H1 for food and beverage applications.

How do you adjust the dispense rate on the LAGD 125/FG2?

You can set the dispensing time flexibly from 1 to 12 months using the top dial without any tools.

What thread connection does this automatic lubricator have?

The lubricator has an R 1/4 BSPT male connection thread for mounting directly to lubrication points.

Is the SKF LAGD 125/FG2 approved for hazardous areas?

Yes, this gas-driven unit is ATEX zone 0 approved and features an IP68 protection rating.

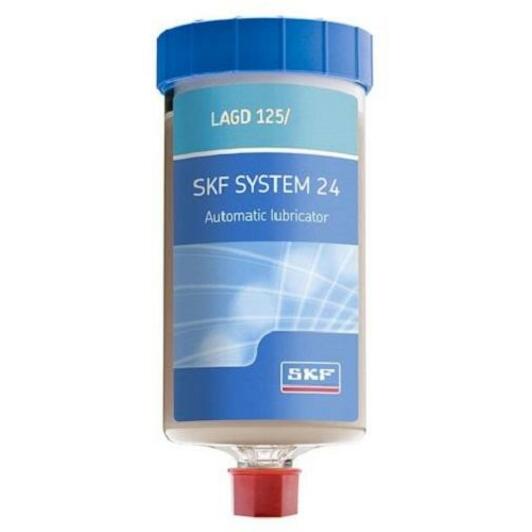

SKF LAGD 125/FG2 gas-powered automatic single-point lubrication system with LGFG 2 food-grade bearing grease 125 ml

Supplier number: SKF LAGD 125/FG2 | EAN 7316579987998

47.20 tax incl.

€39.01 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 15/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable automated lubrication with Skf LAGD 125/FG2

Practical benefits

Food grade bearing grease: The prefilled LGFG 2 grease lets you safely lubricate machinery across demanding food and beverage applications.
Adjustable continuous grease dispense: You can adjust the dispensing rate tool-free from 1 to 12 months for precise relubrication.
Safe for hazardous areas: With ATEX zone 0 approval and a compact design, you easily install the lubricator in restricted spaces.

In a nutshell

The right choise for

With the Skf lagd 125/FG2 System 24 single-point automatic lubricator, you ensure continuous and dependable bearing lubrication across food and beverage processing lines. This gas-driven unit comes prefilled with 125 ml of nsf H1-certified lgfg 2 food-grade bearing grease, minimizing product contamination risks. You can set the dispensing rate tool-free from 1 to 12 months for accurate relubrication. With its 1/4 inch bspt thread, compact profile, and atex zone 0 approval, you safely mount it in restricted or hazardous locations. It eliminates under- and over-greasing while preventing unplanned downtime on mixers and conveyors.

Product information FAQ

€47.20

In stock - tax incl.

Key features according to our expert

Connection size: 1/4"
Thread type: BSPT

Product description

The SKF SYSTEM 24 LAGD 125/FG2 is filled with SKF LGFG 2 food grade bearing grease recommended for applications in the food and beverage industry. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

Flexible dispense rate from 1 to 12 months
ATEX zone 0 approved
Transparent lubricant container allows visual inspection of dispense rate
Compact size, suitable for restrictive areas
Improved reliability and optimized maintenance

Documents

⤓ Technical data sheet PDF

All Features

Connection size: 1/4"
Thread type: BSPT
Maximum pressure: 5
Nominal emptying time: 1-12
Recommended storage temperature: 20 °C
Lubricant quantity: 125
Recommended applications: Conveyor bearings;Wrapping machines;Bottling machines
Ambient temperature range: -20-60
Certifications: NSF H1;Halal;Kosher
Connecting thread: R 1/4
Intrinsically safe approval: II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Power source: Gas cell
Lubricant operating temperature range: -30 to +140 °C
Lubricant description: General purpose food grade grease
Degree of protection (ip): IP 68
Shelf life: 2
Lubricant: LGFG 2
Drive mechanism: Gas cell producing inert gas
Maximum feed line length: 0.3

Brand SKF
03239139
EAN 7316579987998
Supplier number SKF LAGD 125/FG2

Frequently asked questions about this product

Answered by specialists

What lubricant is prefilled in this SKF SYSTEM 24 lubricator?: It contains 125 ml of SKF LGFG 2 food-grade bearing grease, certified NSF H1 for food and beverage applications.
How do you adjust the dispense rate on the LAGD 125/FG2?: You can set the dispensing time flexibly from 1 to 12 months using the top dial without any tools.
What thread connection does this automatic lubricator have?: The lubricator has an R 1/4 BSPT male connection thread for mounting directly to lubrication points.
Is the SKF LAGD 125/FG2 approved for hazardous areas?: Yes, this gas-driven unit is ATEX zone 0 approved and features an IP68 protection rating.
