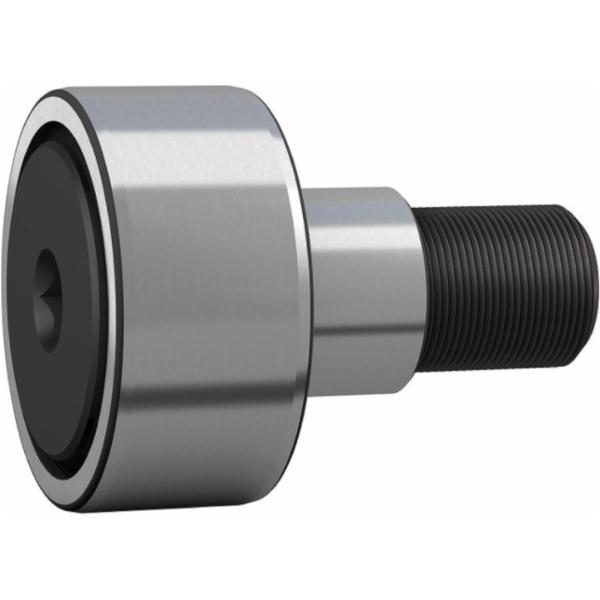

SKF KRVE 40 PPA cam roller with eccentric collar, integrated seal and relubrication 40 mm - KRVE 40 PP

Show more features

Outer diameter

40 mm

Stud diameter

22 mm

With eccentric collar

Yes

Number of rows

1

Outer ring profile

Spherical

Width

58,1 mm

Width, outer ring

20 mm

Basic static load rating

31 kN

Relubrication feature

Centre of each stud end

Lubricant

Grease

Feature for tightening

Hexagonal recess

Sealing type

Contact

Cage

Without

Tolerance class

Other

Material, bearing

Bearing steel

Functional outside diameter

40 mm

Rolling elements

Needle rollers

Radial internal clearance

Between C2 and CN

Sealing

Seal on both sides

Number of flanges, outer ring

2

Limiting speed

2,000 r/min

Basic dynamic load rating

14 kN

Coating

Without

Length

58.1 mm

Stud alignment

Centric stud with eccentric collar
