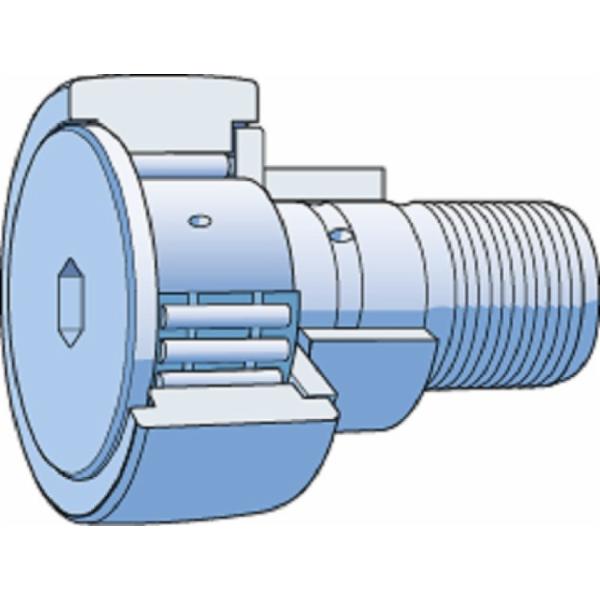

SKF KRVE 35 PPA cam roller with eccentric collar, integrated seal and relubrication 35 mm

SKF
Supplier number: SKF KRVE 35 PPA | EAN 7316571588230
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Outer diameter: 35 mm
  • Stud diameter: 20 mm
  • With eccentric collar: Yes
  • Number of rows: 1
  • Outer ring profile: Spherical
  • Width: 52 mm

All Features

Outer diameter
35 mm
Stud diameter
20 mm
With eccentric collar
Yes
Number of rows
1
Outer ring profile
Spherical
Width
52 mm
Width, outer ring
18 mm
Basic static load rating
23.2 kN
Relubrication feature
Centre of each stud end
Lubricant
Grease
Feature for tightening
Hexagonal recess
Sealing type
Labyrinth
Cage
Without
Tolerance class
Other
Material, bearing
Bearing steel
Functional outside diameter
35 mm
Rolling elements
Needle rollers
Radial internal clearance
Between C2 and CN
Sealing
Seal on both sides
Number of flanges, outer ring
2
Limiting speed
2,600 r/min
Basic dynamic load rating
12.3 kN
Coating
Without
Length
52 mm
Stud alignment
Centric stud with eccentric collar
  • Brand SKF
  • EAN 7316571588230
  • Supplier number SKF KRVE 35 PPA
