What are the dimensions of this SKF KRV 19 PPA cam follower?

This cam follower has an outside diameter of 19 mm, an 8 mm stud diameter, and an overall width of 32.2 mm.

Does this cam follower include an eccentric collar?

No, this model is designed without an eccentric collar for concentric mounting.

What is the outer ring profile?

The outer ring has a crowned (curved) running surface to help minimize edge stresses and tilting.

Can this cam follower be relubricated?

Yes, it features integrated seals and a relubrication hole for routine maintenance.

How many rows of rolling elements does it contain?

This SKF cam follower is built with 1 row of rolling elements.

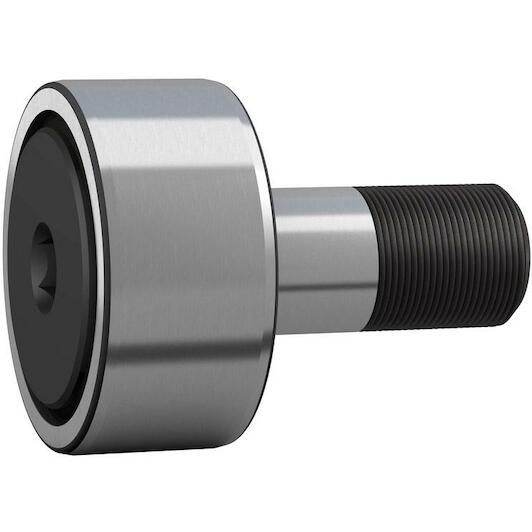

SKF KRV 19 PPA cam roller with integrated seal and relubrication 19 mm - KRV 19 PP

Supplier number: SKF KRV 19 PP | EAN 7316570039450

Recommended Retail Price €128.51

63.40 tax incl.

€52.40 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable motion using Skf followers

Practical benefits

High radial load support: The thick-walled outer ring ensures you manage heavy radial loads reliably in demanding drive systems.
Integrated protective seal: Built-in seals prevent contamination from entering, giving you extended operational service life.
Fast threaded mounting: Thanks to the solid threaded stud, you install the roller directly and securely onto machine components.

In a nutshell

The right choise for

With the Skf krv 19 ppa cam follower, you ensure smooth and dependable linear guidance in demanding cam drives and conveyor systems. Featuring a thick-walled crowned outer ring with a 19 mm outer diameter, it reliably handles high radial loads while minimizing edge stress. The integrated contact seal effectively protects the single-row bearing from dust and contamination, and the relubrication feature via the 8 mm stud ensures long-lasting operation. Designed without an eccentric collar, the solid threaded stud allows quick, direct, and rigid mounting straight into your machine frame.

Product information FAQ

€63.40

In stock - tax incl.

Key features according to our expert

Outer diameter: 19 mm
Stud diameter: 8 mm
With eccentric collar: NO
Number of rows: 1
Outer ring profile: Spherical
Width: 32,2 mm

Product description

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.

High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Easy to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Outer diameter: 19 mm
Stud diameter: 8 mm
With eccentric collar: NO
Number of rows: 1
Outer ring profile: Spherical
Width: 32,2 mm
Width, outer ring: 11
Basic static load rating: 7.8
Relubrication feature: Centre of stud head
Lubricant: Grease
Feature for tightening: Hexagonal recess
Sealing type: Contact
Cage: Without
Tolerance class: Other
Material, bearing: Bearing steel
Functional outside diameter: 19
Rolling elements: Needle rollers
Radial internal clearance: Between C2 and CN
Limiting speed: 3800
Sealing: Seal on both sides
Number of flanges, outer ring: 2
Basic dynamic load rating: 5.01
Coating: Without
Length: 32.2
Stud alignment: Centric

Brand SKF
01210054
EAN 7316570039450
Supplier number SKF KRV 19 PP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF KRV 19 PPA cam follower?: This cam follower has an outside diameter of 19 mm, an 8 mm stud diameter, and an overall width of 32.2 mm.
Does this cam follower include an eccentric collar?: No, this model is designed without an eccentric collar for concentric mounting.
What is the outer ring profile?: The outer ring has a crowned (curved) running surface to help minimize edge stresses and tilting.
Can this cam follower be relubricated?: Yes, it features integrated seals and a relubrication hole for routine maintenance.
How many rows of rolling elements does it contain?: This SKF cam follower is built with 1 row of rolling elements.
