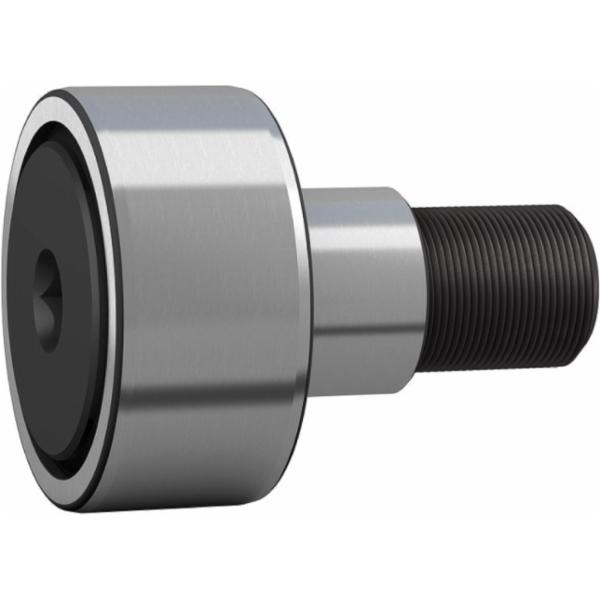

SKF KRE 32 PPA cam roller with eccentric collar, integrated seal and relubrication 32 mm - KRE 32 PP

Show more features

Outer diameter

32 mm

Stud diameter

15 mm

With eccentric collar

Yes

Number of rows

1

Outer ring profile

Spherical

Width

40,2 mm

Width, outer ring

14 mm

Basic static load rating

8.5 kN

Relubrication feature

Centre of each stud end

Lubricant

Grease

Feature for tightening

Hexagonal recess

Sealing type

Contact

Cage

With

Tolerance class

Other

Material, bearing

Bearing steel

Functional outside diameter

32 mm

Rolling elements

Needle rollers

Radial internal clearance

Between C2 and CN

Sealing

Seal on both sides

Number of flanges, outer ring

2

Limiting speed

4,500 r/min

Basic dynamic load rating

6.44 kN

Coating

Without

Length

40.2 mm

Stud alignment

Centric stud with eccentric collar
