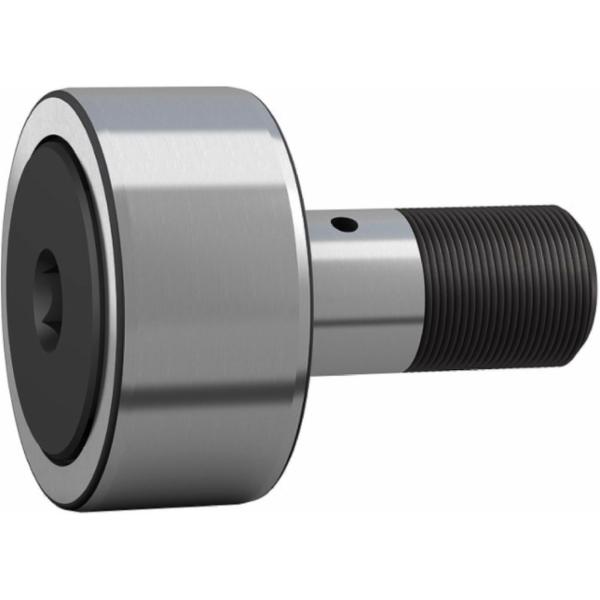

SKF KR 52 B cam roller with relubrication 52 mm - KR 52

Show more features

Outer diameter

52 mm

Stud diameter

20 mm

With eccentric collar

NO

Number of rows

1

Outer ring profile

Spherical

Width

66,1 mm

Width, outer ring

24 mm

Basic static load rating

28 kN

Relubrication feature

Centre of each stud end and radial hole in stud shank

Lubricant

Grease

Feature for tightening

Hexagonal recess

Sealing type

Gap-type

Cage

With

Tolerance class

Other

Material, bearing

Bearing steel

Functional outside diameter

52 mm

Rolling elements

Needle rollers

Radial internal clearance

Between C2 and CN

Sealing

Seal on both sides

Number of flanges, outer ring

2

Limiting speed

2,800 r/min

Basic dynamic load rating

16.1 kN

Coating

Without

Length

66.1 mm

Stud alignment

Centric
