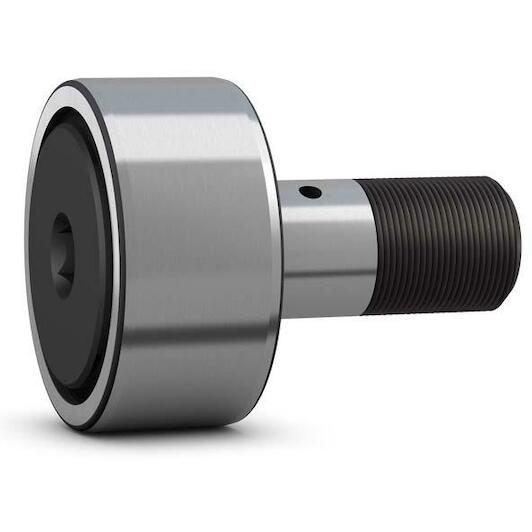

SKF KR 32 PP cam roller (with threaded pin) with sealing on both sides and relubrication option

Recommended Retail Price €149.73

73.80 tax incl.

€60.99 excl. VAT (incl. all environmental contributions)

SKF KR 32 PP cam roller (with threaded pin) with sealing on both sides and relubrication option

€73.80 Recommended Retail Price €149.73

On order: delivered from 21/05/2026

each

Ordered before 20:00 - delivered as of 21/05/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

Product information

Product description

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.

High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Easy to mount
Sealed for increased reliability, with relubrication feature

Key features according to our expert

Outer diameter: 32 mm
Number of rows: 1
Outer ring profile: Spherical
Stud diameter: 12 mm

Specifications / All features

Brand: SKF
01984308
EAN: 7316570620375
Supplier number: SKF KR 32 PP

Outer diameter: 32 mm
Number of rows: 1
Outer ring profile: Spherical
Stud diameter: 12 mm
Sealing: Seal on both sides
Rolling elements: Needle rollers
Functional outside diameter: 32
Material, bearing: Bearing steel
Feature for tightening: Hexagonal recess
Cage: With
Sealing type: Contact
Width, outer ring: 14
Lubricant: Grease
Relubrication feature: Centre of each stud end and radial hole in stud shank
Basic static load rating: 8.5
Tolerance class: Other
Number of flanges, outer ring: 2
Limiting speed: 4500
Basic dynamic load rating: 6.44
Coating: Without
Length: 40.2
Stud alignment: Centric
