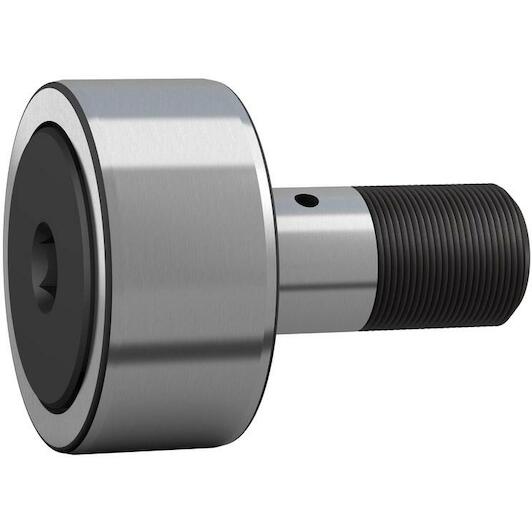

SKF KR 32 B cam roller with relubrication device 32 mm - KR 32

Show more features

Outer diameter

32 mm

Stud diameter

12 mm

With eccentric collar

NO

Number of rows

1

Outer ring profile

Spherical

Width

40,2 mm

Width, outer ring

14 mm

Basic static load rating

8.5 kN

Relubrication feature

Centre of each stud end and radial hole in stud shank

Lubricant

Grease

Feature for tightening

Hexagonal recess

Sealing type

Gap-type

Cage

With

Tolerance class

Other

Material, bearing

Bearing steel

Functional outside diameter

32 mm

Rolling elements

Needle rollers

Radial internal clearance

Between C2 and CN

Limiting speed

4,500 r/min

Sealing

Seal on both sides

Number of flanges, outer ring

2

Basic dynamic load rating

6.44 kN

Coating

Without

Length

40.2 mm

Stud alignment

Centric
