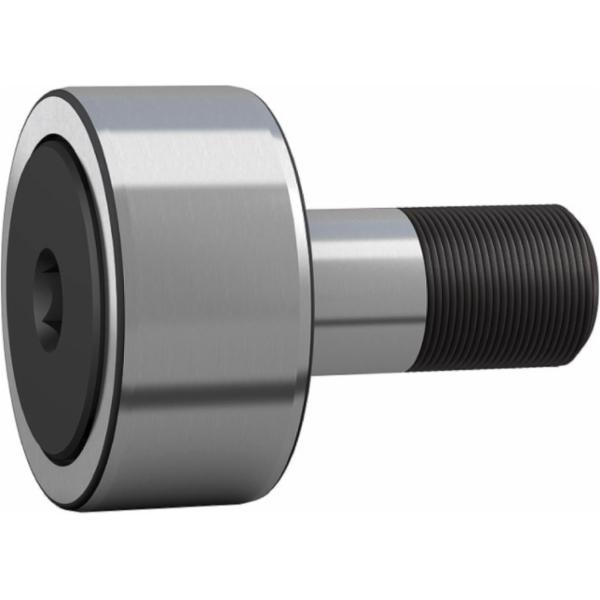

SKF KR 16 X cam roller with relubrication device 16 mm

Show more features

Outer diameter

16 mm

Stud diameter

6 mm

Width

28 mm

Tolerance class

Other

Rolling elements

Needle rollers

Functional outside diameter

16 mm

Material, bearing

Bearing steel

Feature for tightening

Hexagonal recess

Cage

With

Sealing type

Gap-type

Width, outer ring

11 mm

Lubricant

Grease

Relubrication feature

Centre of stud head

Basic static load rating

3.1 kN

Radial internal clearance

Between C2 and CN

Number of flanges, outer ring

2

Sealing

Seal on both sides

Outer ring profile

Cylindrical

Limiting speed

6,000 r/min

Number of rows

1

Basic dynamic load rating

2.92 kN

Coating

Without

Length

28.2 mm

Stud alignment

Centric
