SKF

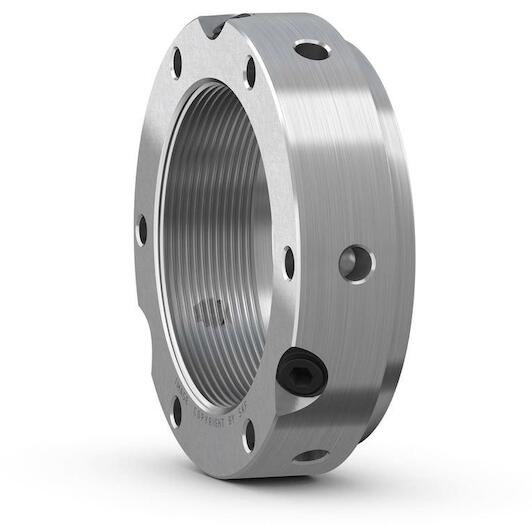

SKF KMTA 9 locknut 45 x 68 x 22 mm M45x1.5

Recommended Retail Price €224.75
111.20 tax incl.
€91.90 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Ordered before 20:00 - delivered as of 30/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

KMTA precision lock nuts have a cylindrical outside surface and are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm.

  • No keyway required
  • Withstands high axial loads
  • Reliable, effective locking mechanism
  • Designed for frequent and simple installation and removal
  • Available for thread M 25x1.5 to M 200x3 (sizes 5 to 40)
Key features according to our expert
  • Outer diameter: 68 mm
  • Width: 22 mm
  • Thread dimension: M45 x 1,5
Specifications / All features
  • Brand: SKF
  • EAN: 7316577655233
  • Supplier number: SKF KMTA 9
Outer diameter
68 mm
Width
22 mm
Thread dimension
M45 x 1,5
Outside diameter
68
Bore diameter
45
Associated mounting tool
B 68-75
Nut for hydraulic mounting
No
Locking device
Incorporated in the lock nut
Thread designation
M 45x1.5
