SKF

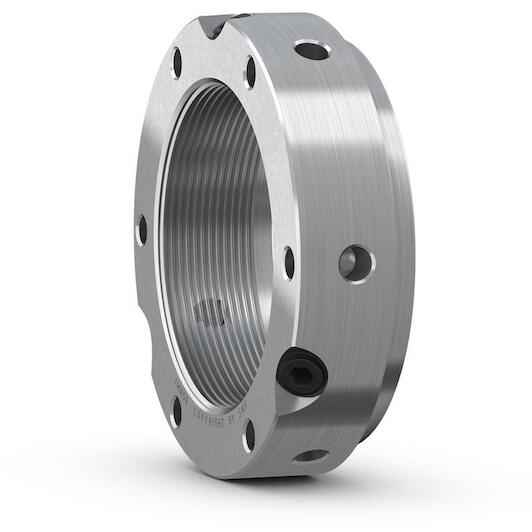

SKF KMTA 11 locknut 55 x 75 x 24 mm M55x1.5

Recommended Retail Price €274.91
135.95 tax incl.
€112.36 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

KMTA precision lock nuts have a cylindrical outside surface and are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm.

  • No keyway required
  • Withstands high axial loads
  • Reliable, effective locking mechanism
  • Designed for frequent and simple installation and removal
  • Available for thread M 25x1.5 to M 200x3 (sizes 5 to 40)
Key features according to our expert
  • Outer diameter: 75 mm
  • Width: 24 mm
  • Thread dimension: M55 x 1,5
Specifications / All features
  • Brand: SKF
  • EAN: 7316577655257
  • Supplier number: SKF KMTA 11
Outer diameter
75 mm
Width
24 mm
Thread dimension
M55 x 1,5
Outside diameter
75
Bore diameter
55
Associated mounting tool
B 68-75
Nut for hydraulic mounting
No
Locking device
Incorporated in the lock nut
Thread designation
M 55x1.5
