SKF

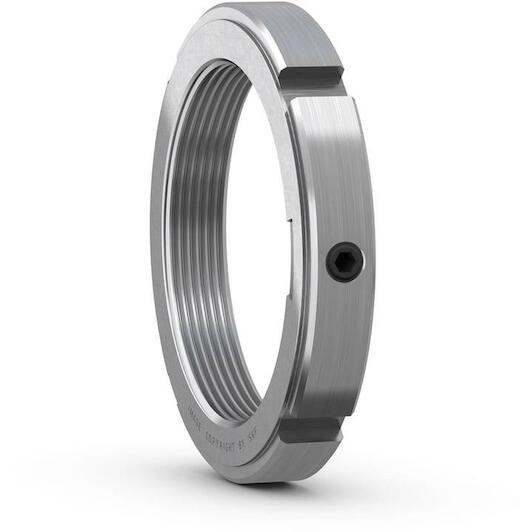

SKF KMK 14 locknut 70 x 92 x 14 mm M70x2

This article is not available

Product description

KMK lock nuts with integral locking are designed to locate radial bearings in less demanding applications. They reduce the cost of the shaft as no keyway is required. Installation with an integral set screw is quick and easy and no separate locking device is necessary. KMK lock nuts have a threaded steel insert in their bore that acts as a pressure plate when a set screw, which runs through the body of the lock nut, is tightened.

  • No keyway required
  • Simple and robust locking for intended applications
  • Reusable
  • Cost-effective
  • Available for thread M 10x0.75 to M 100x2 (sizes 0 to 20)
Key features according to our expert
  • Outer diameter: 92 mm
  • Width: 14 mm
  • Thread dimension: M70 x 2

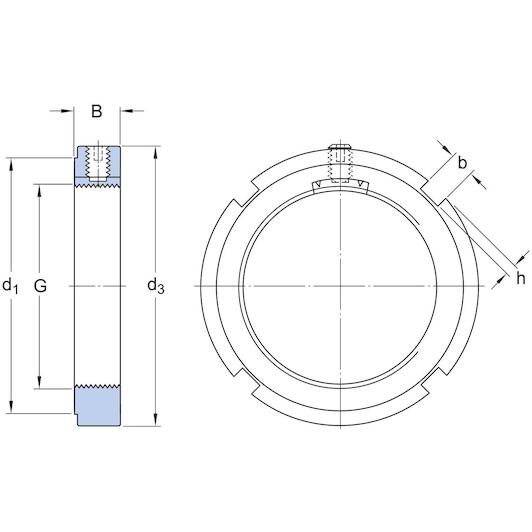

Specifications / All features
  • Brand: SKF
  • EAN: 7316570280166
  • Supplier number: SKF KMK 14
Outer diameter
92 mm
Width
14 mm
Thread dimension
M70 x 2
Outside diameter
92
Bore diameter
70
Associated mounting tool
HN 14
Nut for hydraulic mounting
No
Locking device
Incorporated in the lock nut
Thread designation
M 70x2
