SKF

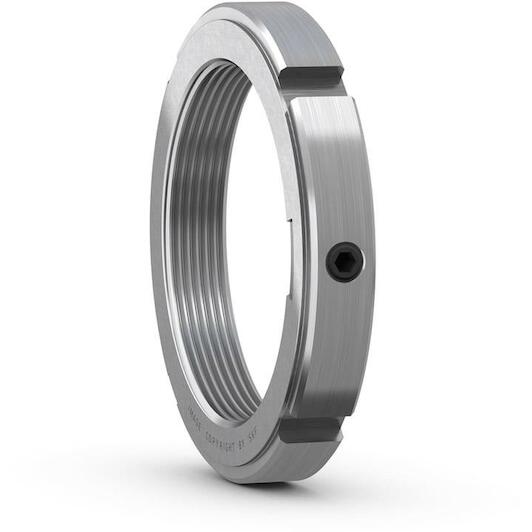

SKF KMK 1 locknut 12 x 22 x 9 mm M12x1

This article is not available

Product description

KMK lock nuts with integral locking are designed to locate radial bearings in less demanding applications. They reduce the cost of the shaft as no keyway is required. Installation with an integral set screw is quick and easy and no separate locking device is necessary. KMK lock nuts have a threaded steel insert in their bore that acts as a pressure plate when a set screw, which runs through the body of the lock nut, is tightened.

  • No keyway required
  • Simple and robust locking for intended applications
  • Reusable
  • Cost-effective
  • Available for thread M 10x0.75 to M 100x2 (sizes 0 to 20)
Key features according to our expert
  • Outer diameter: 22 mm
  • Width: 9 mm
  • Thread dimension: M12 x 1
Specifications / All features
  • Brand: SKF
  • EAN: 7316571483511
  • Supplier number: SKF KMK 1
Outer diameter
22 mm
Width
9 mm
Thread dimension
M12 x 1
Outside diameter
22
Bore diameter
12
Associated mounting tool
HN 1
Nut for hydraulic mounting
No
Locking device
Incorporated in the lock nut
Thread designation
M 12x1
