SKF

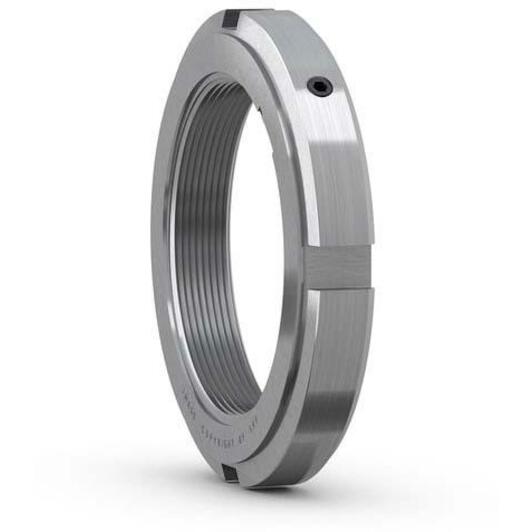

SKF KMFE 18 locknut with metric trapezoidal thread and locking screw 90 mm

Recommended Retail Price €160.87
79.60 tax incl.
€65.79 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

KMFE lock nuts with integral locking screw are designed to locate CARB toroidal roller bearings, sealed spherical roller bearings and sealed self-aligning ball bearings axially on a shaft. They reduce the cost of the shaft as no keyway is required. Installation with an integral set screw is quick and easy and no separate locking device is necessary. Maximum axial run-out locating face and thread 0.02 to 0.03 mm.

  • No keyway required
  • Simple and robust locking for intended applications
  • Reusable
  • Cost-effective
  • Available for thread M 20x1 to M 200x3 (sizes 4 to 40)
Key features according to our expert
  • Outer diameter: 120 mm
  • Width: 19 mm
  • Thread dimension: M90 x 2
Specifications / All features
  • Brand: SKF
  • EAN: 7316571587806
  • Supplier number: SKF KMFE 18
Outer diameter
120 mm
Width
19 mm
Thread dimension
M90 x 2
Outside diameter
120
Bore diameter
90
Associated mounting tool
HN 18-20
Nut for hydraulic mounting
No
Locking device
Incorporated in the lock nut
Thread designation
M90x2
