SKF

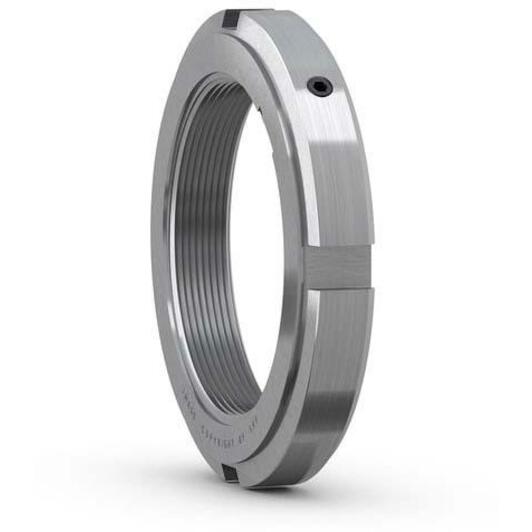

SKF KMFE 15 locknut with metric trapezoidal thread and locking screw 75 mm

Recommended Retail Price €118.71
58.60 tax incl.
€48.43 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

The minimum purchase order quantity for the product is 5.

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

KMFE lock nuts with integral locking screw are designed to locate CARB toroidal roller bearings, sealed spherical roller bearings and sealed self-aligning ball bearings axially on a shaft. They reduce the cost of the shaft as no keyway is required. Installation with an integral set screw is quick and easy and no separate locking device is necessary. Maximum axial run-out locating face and thread 0.02 to 0.03 mm.

  • No keyway required
  • Simple and robust locking for intended applications
  • Reusable
  • Cost-effective
  • Available for thread M 20x1 to M 200x3 (sizes 4 to 40)
Key features according to our expert
  • Outer diameter: 98 mm
  • Width: 16 mm
  • Thread dimension: M75 x 2
Specifications / All features
  • Brand: SKF
  • EAN: 7316571585352
  • Supplier number: SKF KMFE 15
Outer diameter
98 mm
Width
16 mm
Thread dimension
M75 x 2
Outside diameter
98
Bore diameter
75
Associated mounting tool
HN 15
Nut for hydraulic mounting
No
Locking device
Incorporated in the lock nut
Thread designation
M75x2
