SKF

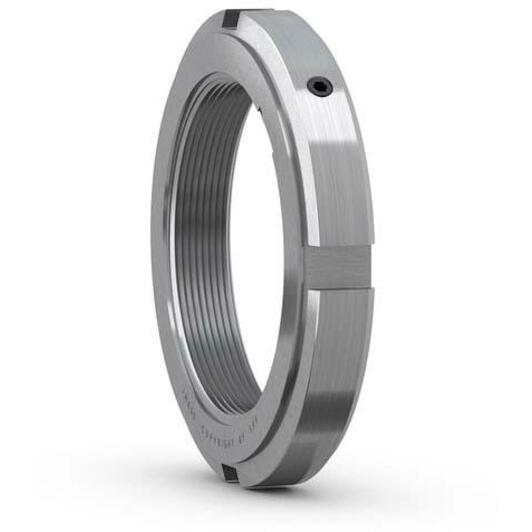

SKF KMFE 13 locknut with metric trapezoidal thread and locking screw 65 mm

Recommended Retail Price €78.61
38.80 tax incl.
€32.07 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

The minimum purchase order quantity for the product is 5.

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

KMFE lock nuts with integral locking screw are designed to locate CARB toroidal roller bearings, sealed spherical roller bearings and sealed self-aligning ball bearings axially on a shaft. They reduce the cost of the shaft as no keyway is required. Installation with an integral set screw is quick and easy and no separate locking device is necessary. Maximum axial run-out locating face and thread 0.02 to 0.03 mm.

  • No keyway required
  • Simple and robust locking for intended applications
  • Reusable
  • Cost-effective
  • Available for thread M 20x1 to M 200x3 (sizes 4 to 40)
Key features according to our expert
  • Outer diameter: 85 mm
  • Width: 15 mm
  • Thread dimension: M65 x 2
Specifications / All features
  • Brand: SKF
  • EAN: 7316571585314
  • Supplier number: SKF KMFE 13
Outer diameter
85 mm
Width
15 mm
Thread dimension
M65 x 2
Outside diameter
85
Bore diameter
65
Associated mounting tool
HN 12-13
Nut for hydraulic mounting
No
Locking device
Incorporated in the lock nut
Thread designation
M65x2
