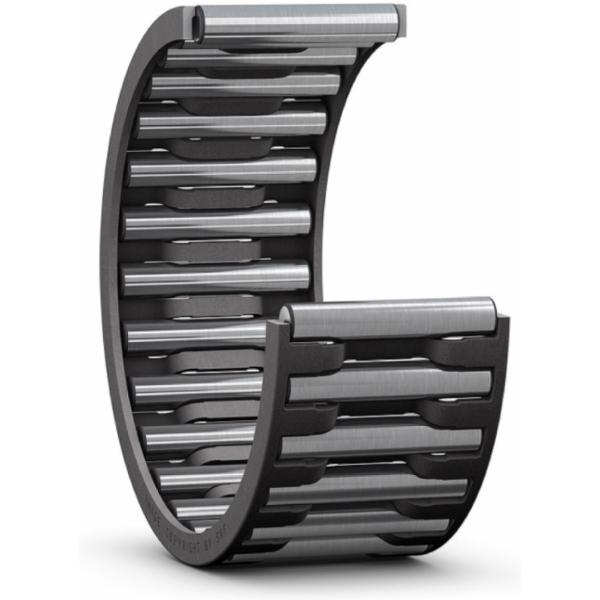

SKF K 90X98X30 single-row needle wreath 90 x 98 x 30 mm

This article is not available

Key features according to our expert
  • Inner diameter: 90 mm
  • Width: 30 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Sheet steel
  • Outer diameter: 98 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571219752
  • Supplier number: SKF K 90X98X30
Inner diameter
90 mm
Width
30 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Sheet steel
Outer diameter
98 mm
Bore diameter of needle roller complement
90 mm
Tolerance class
Normal
Aligning feature
Without
Basic static load rating
173 kN
Lubricant
None
Relubrication feature
Without
Reference speed
4,500 r/min
Sealing
Without
Seal type
Not applicable
Cage
Sheet steel
Bearing part
Needle roller and cage assembly
Limiting speed
5,300 r/min
Outside diameter of needle roller complement
98 mm
Outer ring type
Not applicable
Number of rows
1
Basic dynamic load rating
64.4 kN
Coating
Without
Outside diameter
98 mm
Material, bearing
Bearing steel
