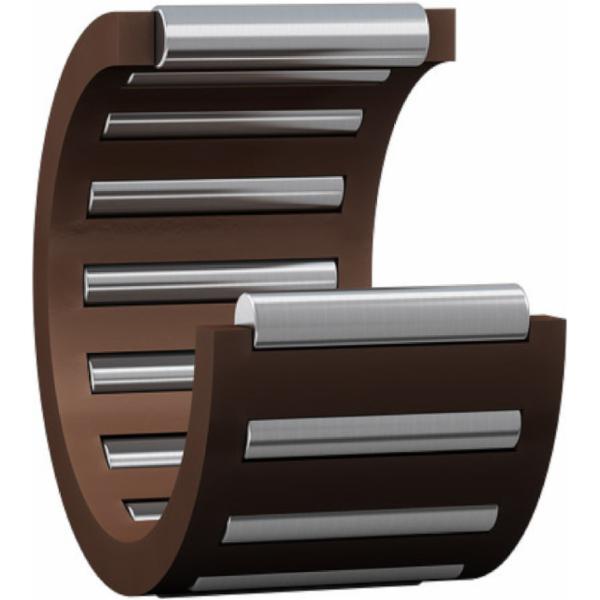

SKF K 3X5X9 TN single-row needle roller bearing 3 x 5 x 9 mm

Show more features

Inner diameter

3 mm

Width

9 mm

Seal (bearing)

Without seal

Material (bearing seal)

Not applicable

Material (cage)

Plastic

Outer diameter

5 mm

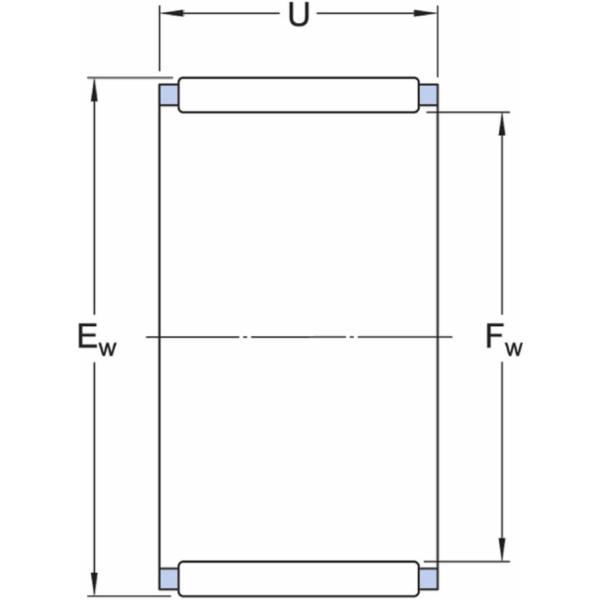

Bore diameter of needle roller complement

3 mm

Tolerance class

Normal

Aligning feature

Without

Basic static load rating

1.53 kN

Lubricant

None

Relubrication feature

Without

Reference speed

40,000 r/min

Sealing

Without

Seal type

Not applicable

Cage

Non-metallic

Bearing part

Needle roller and cage assembly

Limiting speed

45,000 r/min

Outside diameter of needle roller complement

5 mm

Outer ring type

Not applicable

Number of rows

1

Basic dynamic load rating

1.68 kN

Coating

Without

Outside diameter

5 mm

Material, bearing

Bearing steel
