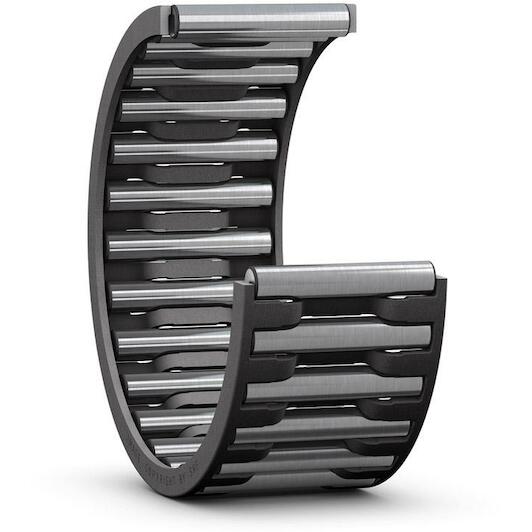

SKF K 30X35X17 single-row needle roller bearing 30 x 35 x 17 mm

SKF
Supplier number: SKF K 30X35X17 | EAN 7316577009227
Recommended Retail Price €23.21
11.40 tax incl.
€9.42 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Ordered before 20:00 - delivered as of 22/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€11.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 30 mm
  • Width: 17 mm
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Material (cage): Sheet steel
  • Outer diameter: 35 mm

Product description

Needle roller and cage assemblies are self-contained, ready-to-mount bearings without inner and outer rings. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space. As the clearance of the bearing arrangement is only affected by the roller sorting and the finish of shaft and housing, very precise bearing arrangements can be achieved.

  • High radial load carrying capacity
  • High stiffness
  • High precision
  • Lowest cross-sectional height among rolling bearings
  • Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
30 mm
Width
17 mm
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Material (cage)
Sheet steel
Outer diameter
35 mm
Basic static load rating
34
Bearing part
Needle roller and cage assembly
Tolerance class
Normal
Aligning feature
Without
Reference speed
13000
Bore diameter of needle roller complement
30
Relubrication feature
Without
Outside diameter of needle roller complement
35
Lubricant
None
Cage
Sheet steel
Sealing
Without
Number of rows
1
Outer ring type
Not applicable
Limiting speed
15000
Basic dynamic load rating
18.7
Coating
Without
Outer diameter
35
Material, bearing
Bearing steel
  • Brand SKF
  • EAN 7316577009227
  • Supplier number SKF K 30X35X17
