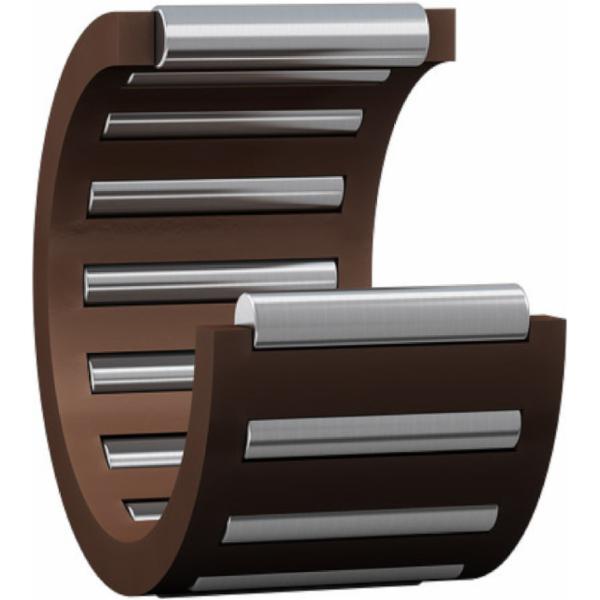

SKF K 12X18X12 TN single-row needle roller bearing 12 x 18 x 12 mm

Show more features

Inner diameter

12 mm

Width

12 mm

Seal (bearing)

Without seal

Material (bearing seal)

Not applicable

Material (cage)

Plastic

Outer diameter

18 mm

Bore diameter of needle roller complement

12 mm

Tolerance class

Normal

Aligning feature

Without

Basic static load rating

10 kN

Lubricant

None

Relubrication feature

Without

Reference speed

26,000 r/min

Sealing

Without

Seal type

Not applicable

Cage

Non-metallic

Bearing part

Needle roller and cage assembly

Limiting speed

30,000 r/min

Outside diameter of needle roller complement

18 mm

Outer ring type

Not applicable

Number of rows

1

Basic dynamic load rating

9.52 kN

Coating

Without

Outside diameter

18 mm

Material, bearing

Bearing steel
