SKF

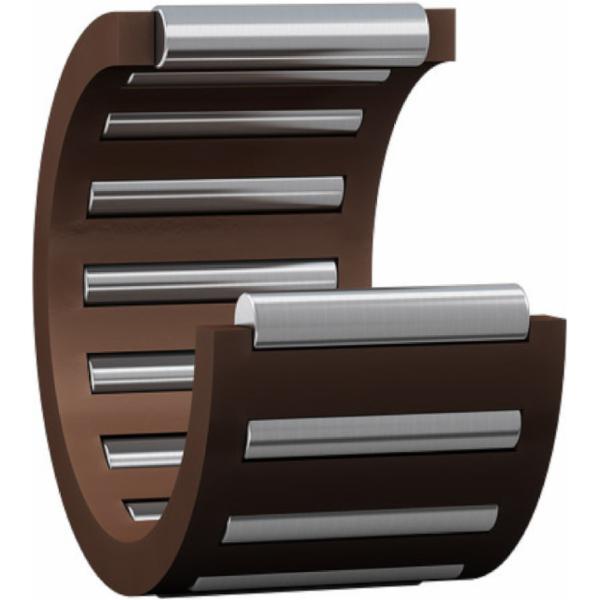

SKF K 10X16X12 TN single-row needle roller bearing 10 x 16 x 12 mm

This article is not available

Key features according to our expert
  • Inner diameter: 10 mm
  • Width: 12 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Plastic
  • Outer diameter: 16 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570095326
  • Supplier number: SKF K 10X16X12 TN
Inner diameter
10 mm
Width
12 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Plastic
Outer diameter
16 mm
Bore diameter of needle roller complement
10 mm
Tolerance class
Normal
Aligning feature
Without
Basic static load rating
7.2 kN
Lubricant
None
Relubrication feature
Without
Reference speed
28,000 r/min
Sealing
Without
Seal type
Not applicable
Cage
Non-metallic
Bearing part
Needle roller and cage assembly
Limiting speed
32,000 r/min
Outside diameter of needle roller complement
16 mm
Outer ring type
Not applicable
Number of rows
1
Basic dynamic load rating
7.65 kN
Coating
Without
Outside diameter
16 mm
Material, bearing
Bearing steel
